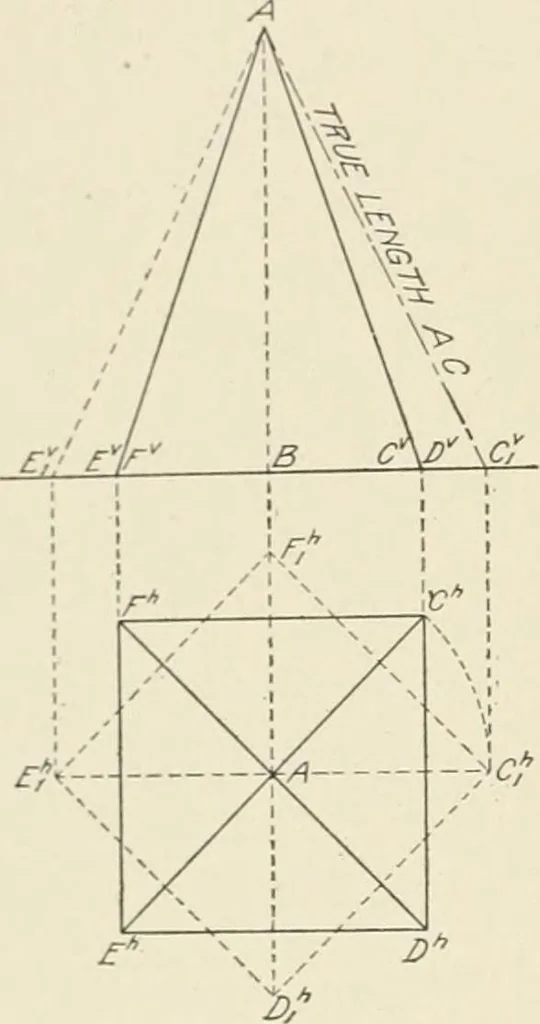

ths.The base of the pyramid is still on H, andtherefore is projected on V in the groundline. The apex is in the same place asbefore, hence the vertical projection ofthe pyramid in its new position is shownby the dotted lines. The vertical projec-tion A C^ is the true length of edge .4 C*.Now if it… … Fig. 102. Projections ofSquare Pyramid aV aC 1 ,
