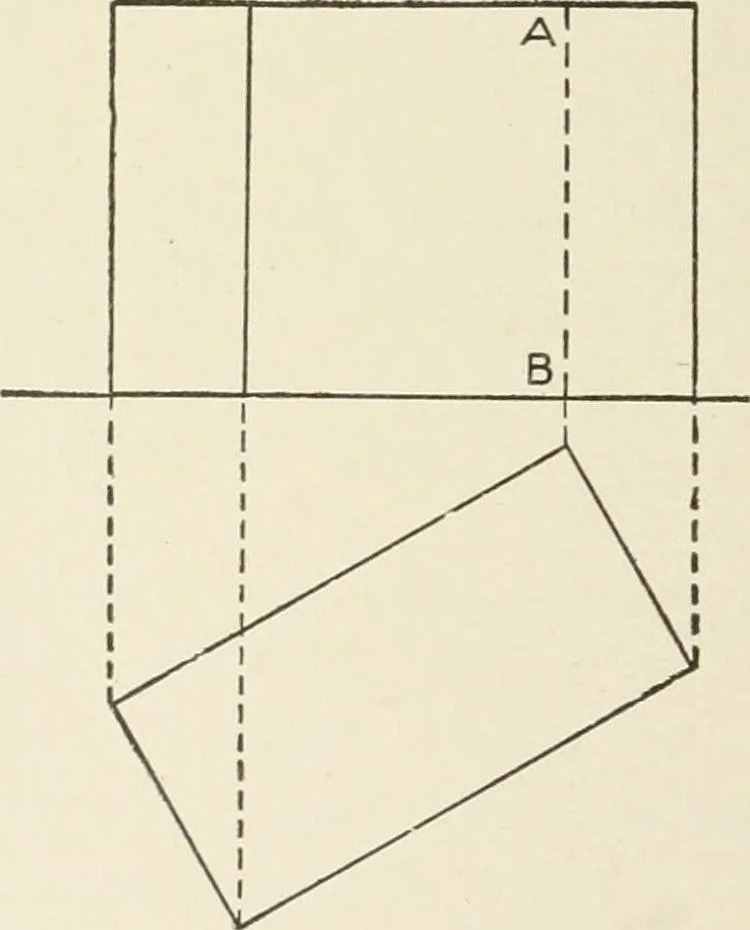

tion gives vertical dimensions and those parallelto r. while the end view shows vertical dimensions and those per-pendicular to V. The profile view of any object may be found asshown for the line A B, Fig. 106, by taking one point at a time. REPRESENTATION OF OBJECTS In Fig. 108 there is… … Fig. 108. Proper Representationof Rectangular Prism In mechanical drawing the edges which in projection form a part<jf the outline or contour of the figure must always be visible, henceare always drawn as full lines, while the lines or edges which areinvisible are drawn dotted. The plan shows…
