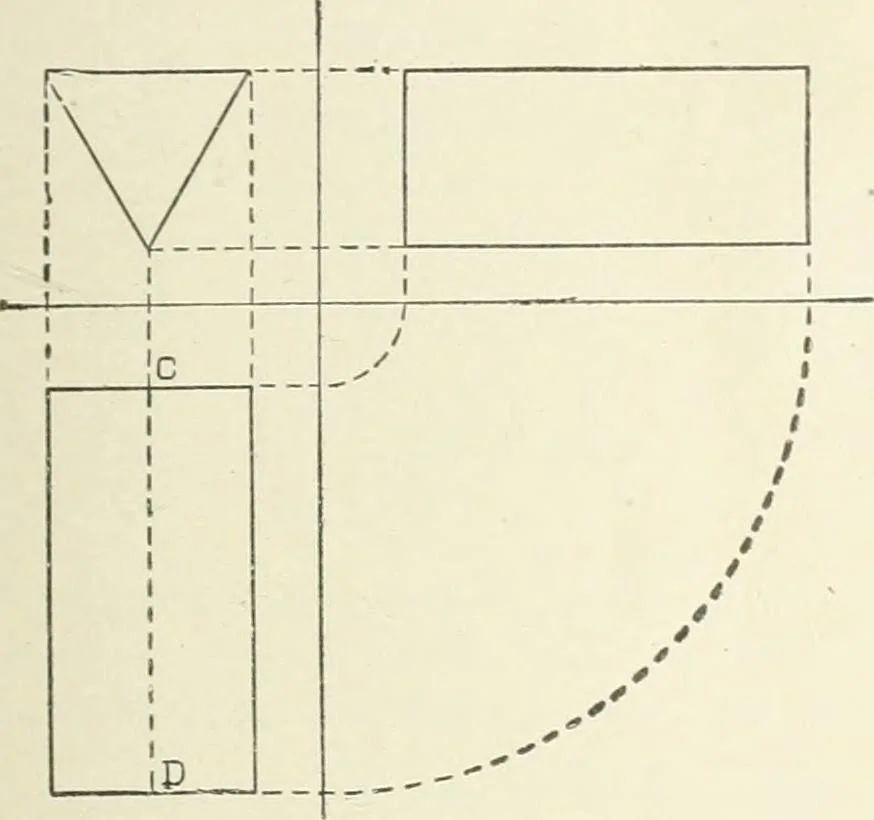

MECHANICAL DRAWING. if ill eleviition an edge projectetl within the figure is a back edge,it must be dotted, and in plan if an edge projected witliin theoutline is a lower edge it is dotted. Fig. 12 is a circular C3linder with the length vertical and … Fig. 11. with a hole part way tiirougli as shown in elevation. Fig. 13 isplan, elevation and end view of a triangular prism with a squarehole from end to end. The plan and elevation alone would beinsufficient to determine positively the shape of the hole, but theend view shows at a glance that it…
