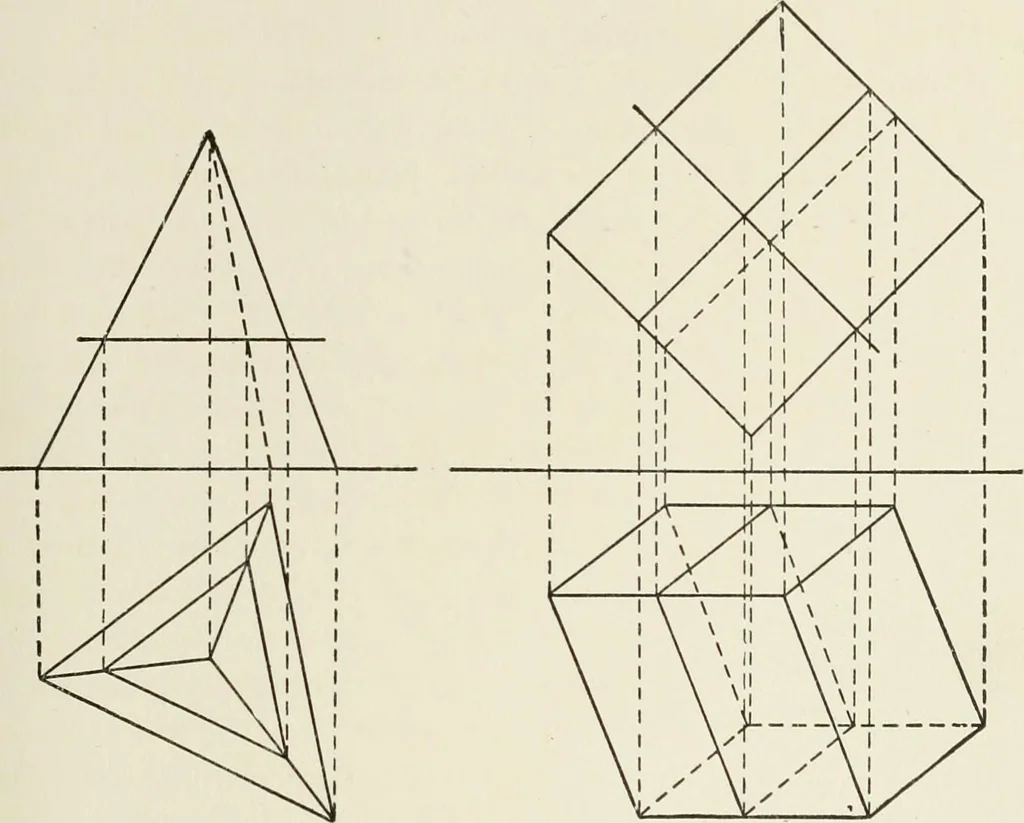

ase. Theintersections are found, however, in exactly the same manner as inthe previous figures, by projecting the points where the plane inter-sects the edges in elevation, on to the other view of the same line. ILLUSTRATIVE EXAMPLES 1. Find the horizontal projection of a transverse section of… … Fig. 120. Intersectioa ofPlane and Pyramid Fig. 121. Intersection of Planeand Prism
