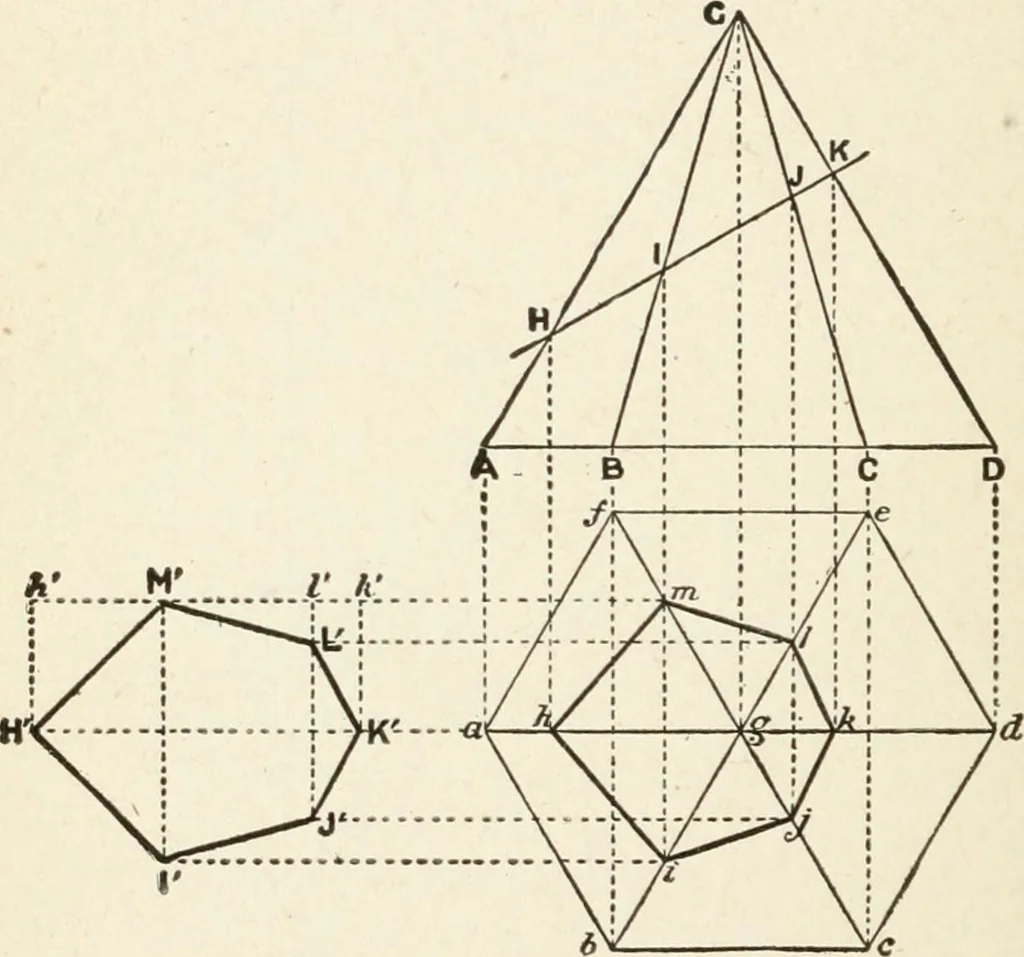

The projections of a hexagonal pyramid be-ing given, to draw the section made by a plane perpen-dicular to the vertical plane and inclined to the hori-zontal plane. Let A B C D and a b c d e f g (Fig. 40) be the givenprojections, and H I J K the given plane. The hori- 68 MODERN CARPENTRY zontal… … Fig. 40. ih 1, h k. From h, M, 1, and k draw perpendicularsmeeting the other lines in H, I, L, J, and K, and jointhe points of intersection. H I J Iv L M is the truesection made by the plane. SOLID GEOMETRY 69 XXXII. The projections of an octagonal pyramidbeing- given, to draw the section made by a…
