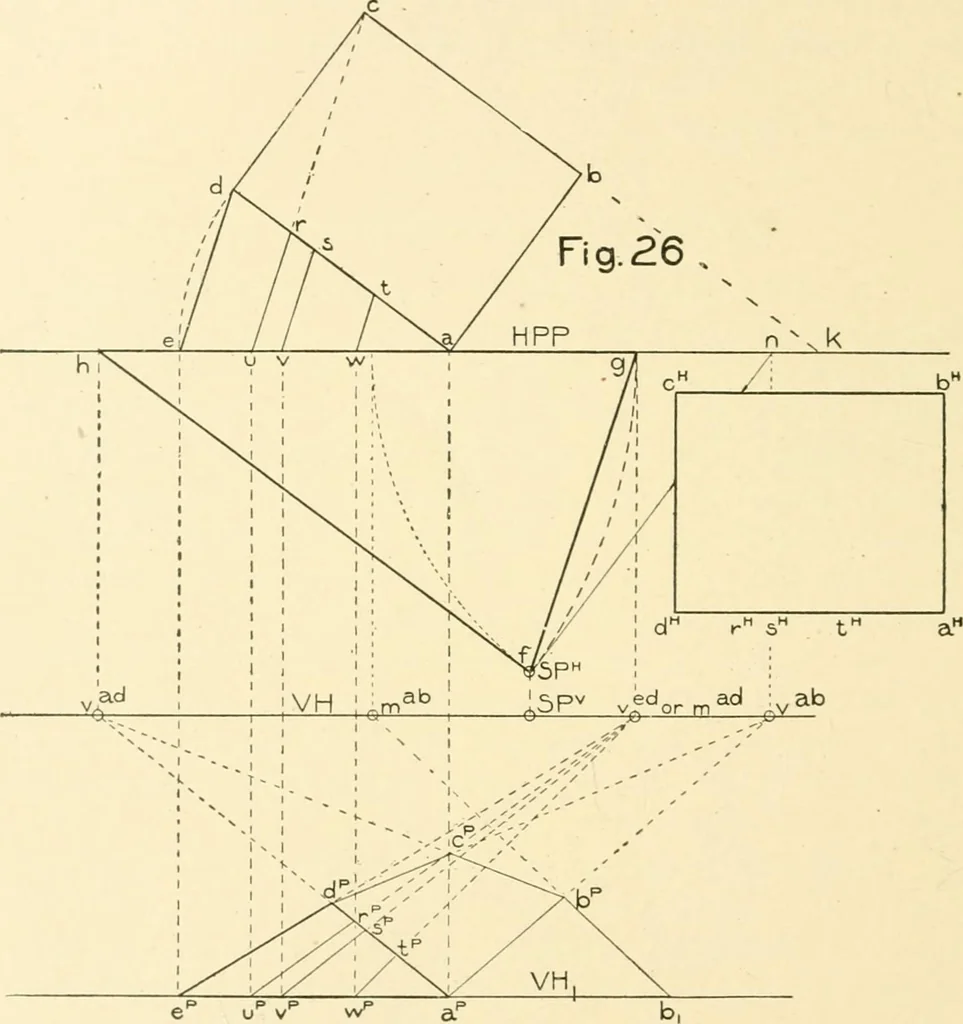

t. The position of the stationpoint is shown by its two projections SP^ and SP\ The vanish- 135 52 PEKSPECTIVE DRAWIKG. lug point for the line ad will be found at t^ in the usual man-ner. In a simihir way, the vanishing point for the line ed^ whichforms the base of the isosceles triangle, will be… … below the point e. e^d^ will vanish at v^^, and determine by itsintersection with a^dy the length of that line. e^u^d^ is theperspective of the isosceles triangle ead. If the line ad in the diagram is divided in any manner bytlie points if, s, and r, the pei-spectives of these points may befound on…
