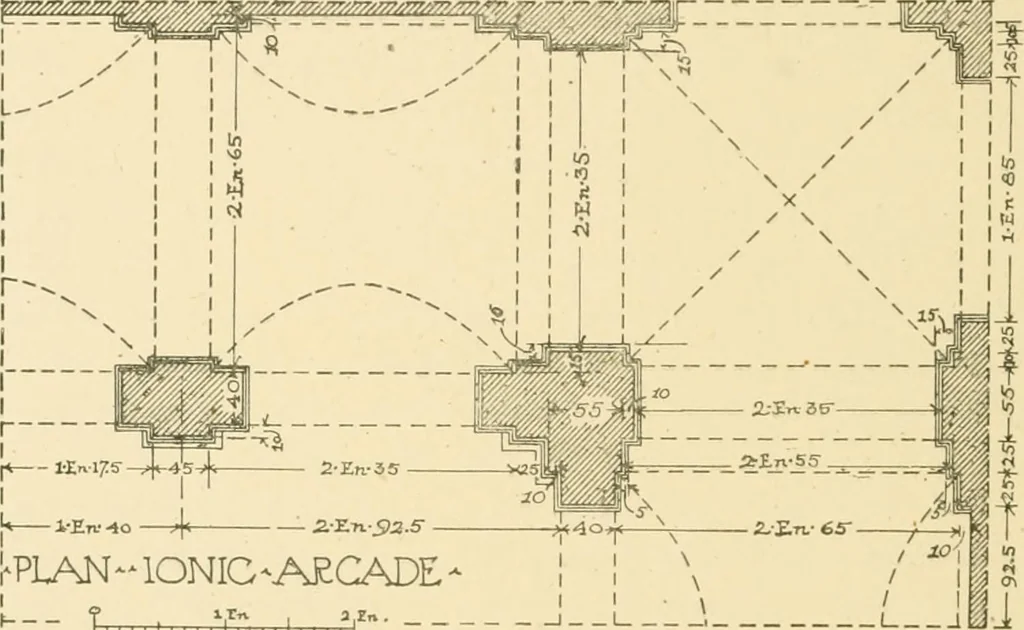

formed a gutter for the removal of rainwater L 367 58 THE KOMAN OKDEKS PLATE M. 150. The student is required to design an arcade and galleryusing the Ionic Order. This gallery is to be similar in treatmentto the one shown in Plate XXIII, where the Tuscan Orderis employed. The plan of this gallery… … — V£tv 40 4^ PLAN-^ IONIC-ARCADE - t ? ^ i.r-n a: i^ • I l_ Fig. 26. this gallery. It is simply described as a barrel vault withthe penetration from each side of arches of a less height andradius. The perspective sketch shows the method of treating theimpost moulding on the interior, breaking it…
