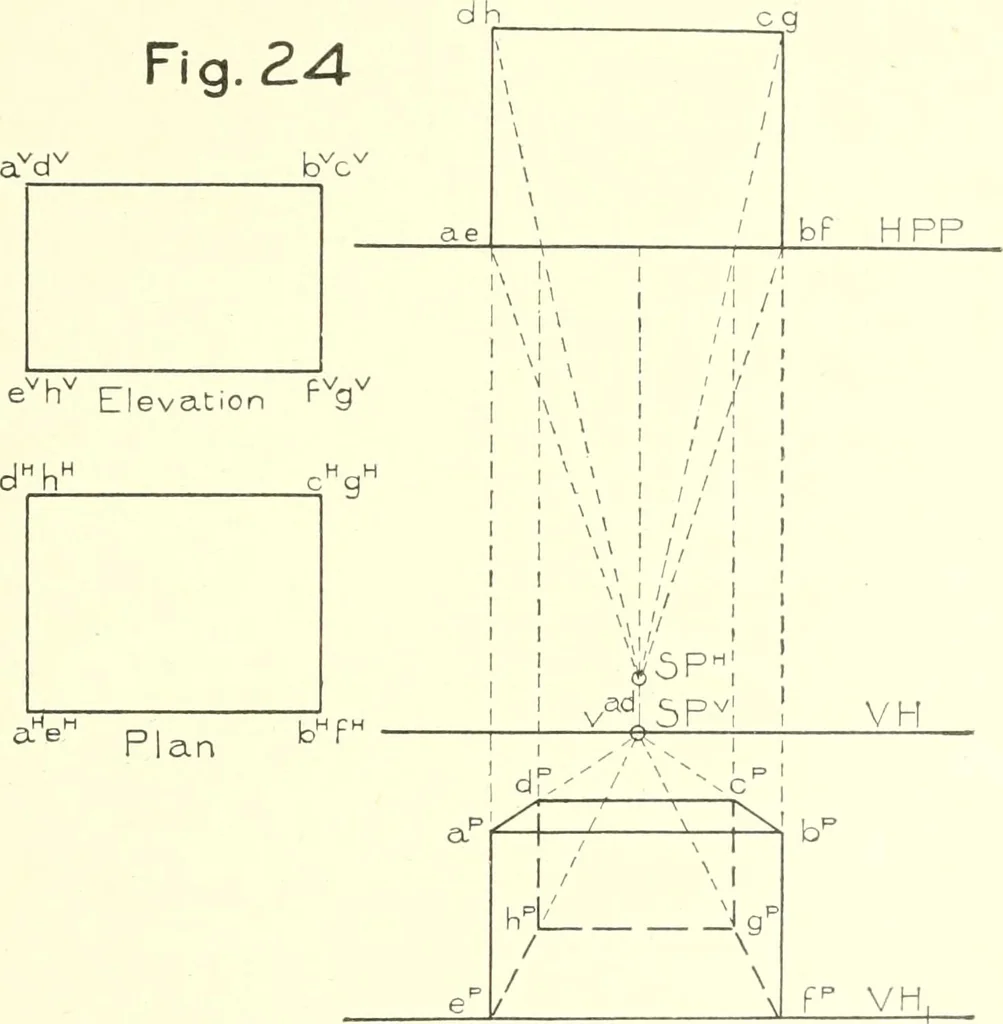

)ictureplane. It will thus show in its true size and shape (§ 24 A). The … points e^ and/^ will be found on VHi vertically below the pointse and/in the diagram. 81. Both the edges e^a} and Ph^ are lines of measures, andwill show the true height of the block, as given by the elevatit)n. 82. The two lines a^h^ and e\f^\ since they are ft)rmed bythe intersection of tlie…
