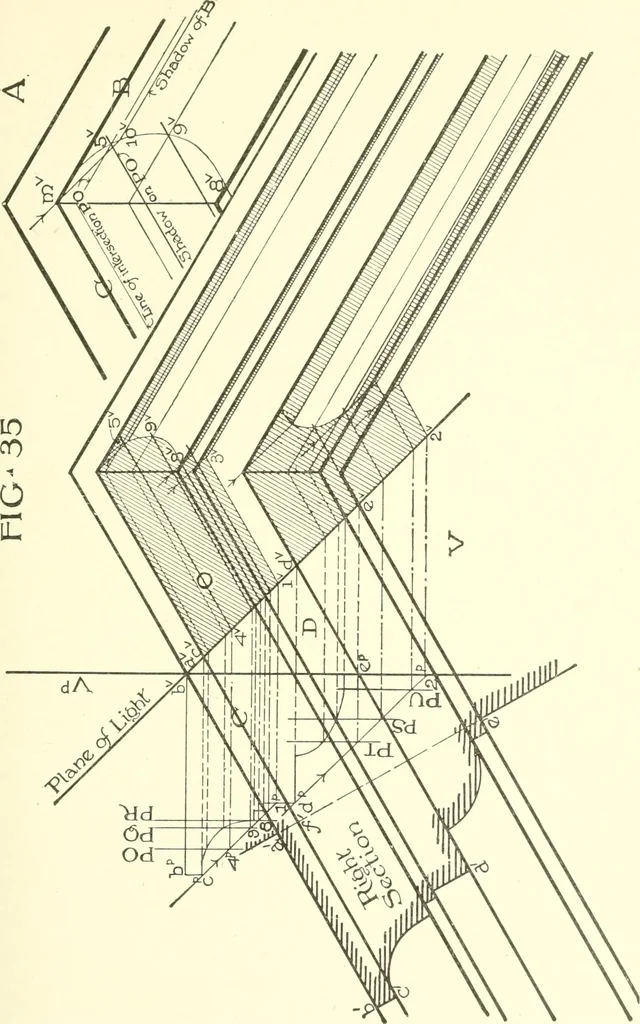

). This shadow will cross the Line of intersection ofPO at the point 5^. The point 5^ will be one point in the shadowof the edge C (indefinitely extended) on the right-hand slope ofthe pediment. Other points, 8^ and 9% can be found in a likemanner by use of the auxiliary planes Q and P. Through a… … 36 SHADES AND SHADOWS curve. The point of intersection, 10^, is the shadow of the end ofthe edge C. It is also the beginning of the shadow of the edge Bon tlie riglit-hand slope, which shadow is parallel to B. The remaining shadows of the pediment are found in thesame manner, and may be understood,…
