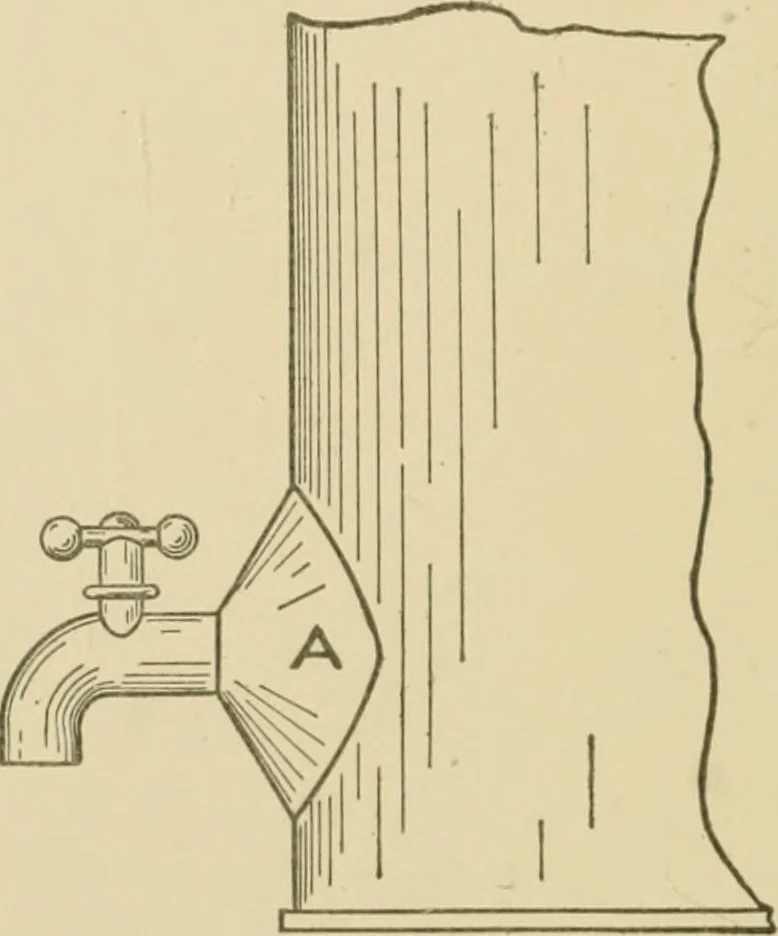

f the tank D A equalto 3^ inches, and from D drawthe vertical line D E. Makethe distance from G to H equalto 2|- inches, the diameter of thefaucet F I 14 inches and thevertical height K. C 1| inchesDraw a line from G to H inter-secting the center line D E at K.Then using K as center describethe… … oo 88 SHEET-METAL WORK 29 of the tank A B as shown. From these intersections draw hori-zontallines intersecting the side of the cone HI at 1, 2, 3, and4.Now use E as center, and with radius equal to E 1 dLscribe the -ID
