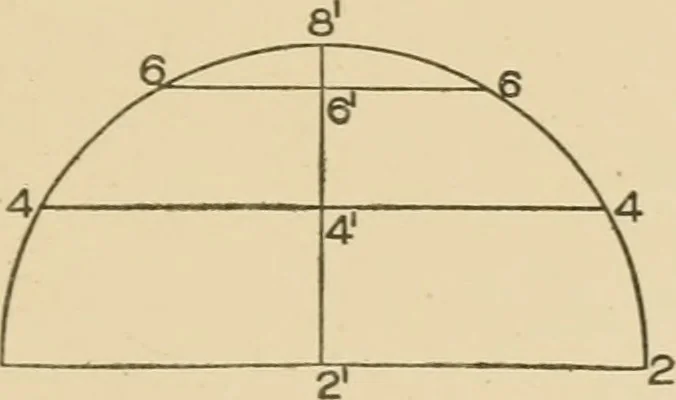

plan as radius, and 7 in Fig. 29 ascenter, describe the arc 5, Avhich intersect by an arc struck from 6as center and with 6^-5 in (B) in Fig. 27 as radius. Proceed inthis manner, using alternately as radii first the divisions in Fig. 28,then the length of the slant lines in (B) in Fig. 27, the… … 95 36 SHEET-METAL WORK by 2 V. Then will 2-8-2-l-7-l be the desired pattern, towhich laps must be allowed. For the pattern for the side of the bath draw any line 9-1 inFig. 30 equal to 9-1 in plan in Fig. 27. Now with a radius equal
