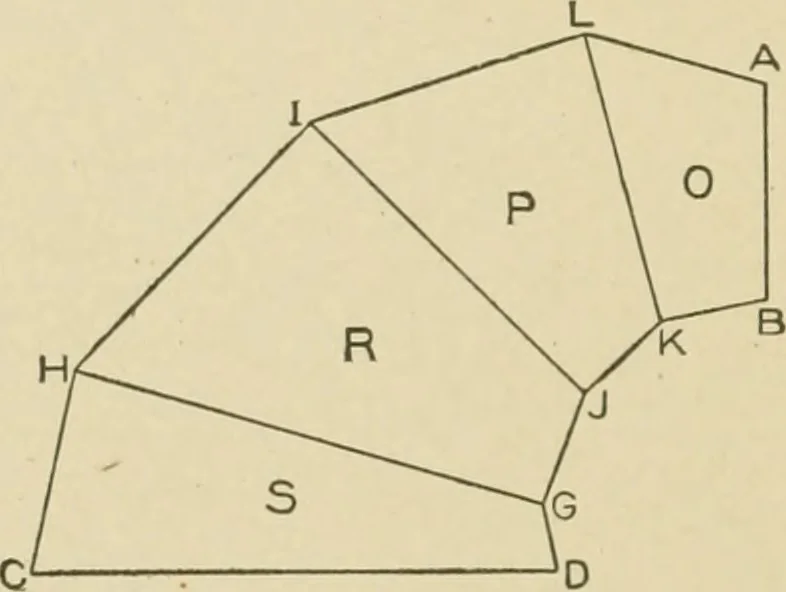

nbe done the same as if regular i^ieced elbows were being developed.As the elbow is to consist of four pieces in 90°, follow the rule given in connection with elbow drafting. The top and bottom 90piece equal 2; the two middle pieces equal 4; total 6. -^ = 11 Lay off A B C D according to the…
