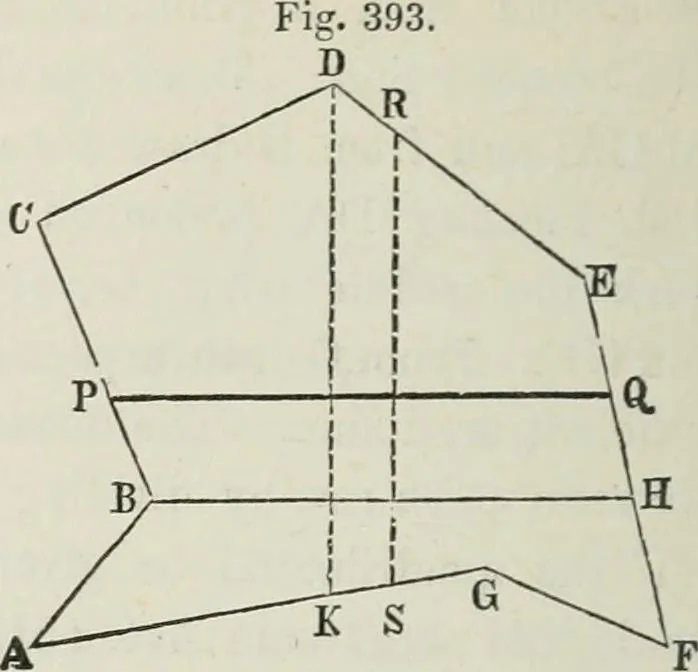

S60 LiriNG OUT AND DIVIDING UP LAND. [part xi DIVISION OF POLYGONS. (555) By lines running in any direction. Let ABCDEFG bea given polygon, and BH the di-rection parallel to -vvhicli is to bedrawn a line PQ, dividing thepolygon into two parts in any de-sired ratio = m : n. The area PCDEQ = ABCDEFG. … m -\- nTaking it from the area BCDEH,the remainder will be the areaBPQH. The quadrilateralBCEH, CE being supposed to be drawn, can then be divided bythe method of Art. (548), into two parts, BPQH and PQEC,having to each other a known relation. If DK were the given direction, at right angles to the…
