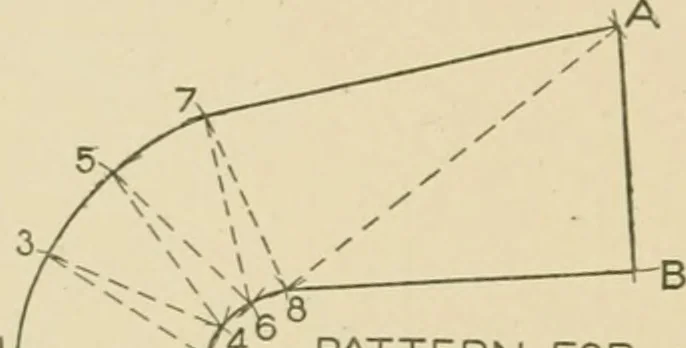

l lines, equal in height to similar numbers in ele-vation, in Fig. 75, measured from the line i K. For example takethe distance 4 5 in plan and place it as shown by 4 5 in Fig. 76.Erect perpendiculars 4 4 and 5 5 equal to 4 4 and 5 5 in eleva-tion in Fig. 75. Draw a line from 4 to 5 in Fig. 76,… … 2 PATTERN FORTOP OR BOTTOMA-B-C-D IN FIG.75 Fig. 77.
