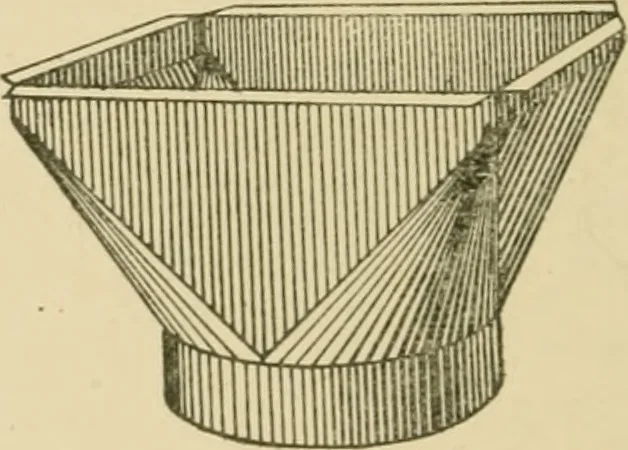

2 PATTERN FORTOP OR BOTTOMA-B-C-D IN FIG.75 Fig. 77. … Fig. 78. center and 1^ 8^ in («), in Fig. 75, as radius, describe the arc at3, in Fig. 77, which is intersected by an arc, struck from 2 ascenter, and 2 3, in Fig. 76, as radius. Now with radius equal to2V 4V in (■ Y) in Fig. 75 and 2 in Fig. 77 as center, describe thearc at 4 which is intersected…
