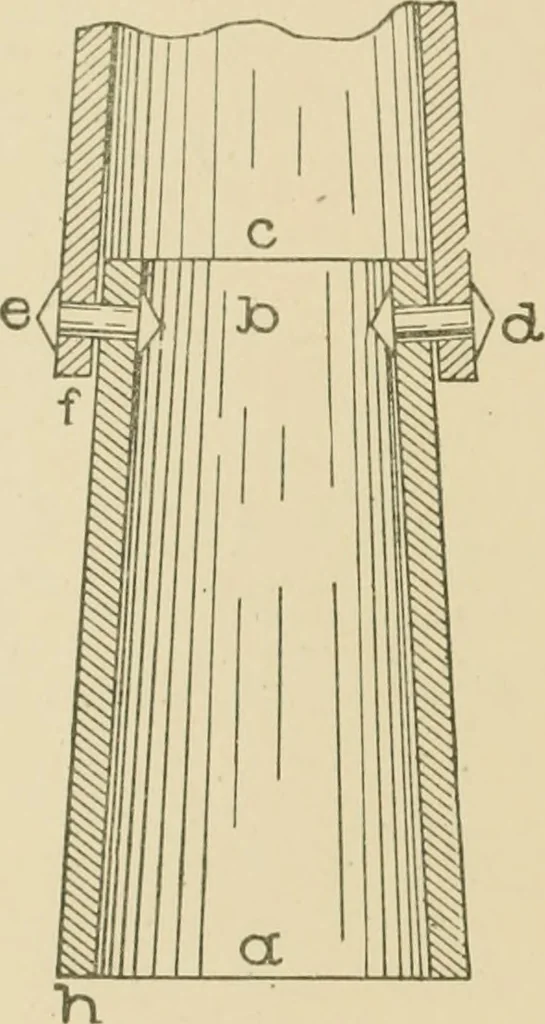

uld the plan be divided into 32 parts,divide the circumference of the stack by 32 and place -^\ of the cir-cumference on 9 J in pattern, measuring from the center line D II,and after obtaining the proper cut, trace opposite the line D H. In constructing a stack where each Joint tapers and fits… … a ^ Fig. 128. Fig. 129. ping over it with a lap equal ioJ\ the joint being riveted togetherat e and cl. When drawing the first taper joint a h, care must betaken to have the diameter at f on the outside, equal to the insidediameter at the bottom at h. This allows the second joint to slipover a…
