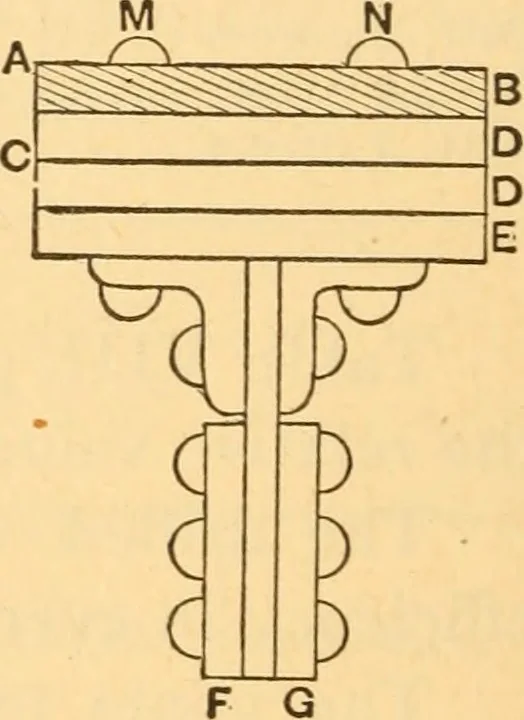

tobe in tension. AB is a horizontal cover plate, underwhich the horizontal component plates formlap joints at C, D and E. As the distanceMN must necessarily be much greater than the allowable pitchin boiler work, these lap joints, considered in themselves,should be at least treble riveted. On the… … Art. 73-] TRUSS JOINTS. 641 seem, therefore, to be little or no benefit in more than trebleriveting. The distance between the centres of rivets along the line ofthe chord—i.e.y along AB in the upper figure—may be taken atthree diameters. The overlap CD = DE (upper Fig.) wouldthen be taken at 9…
