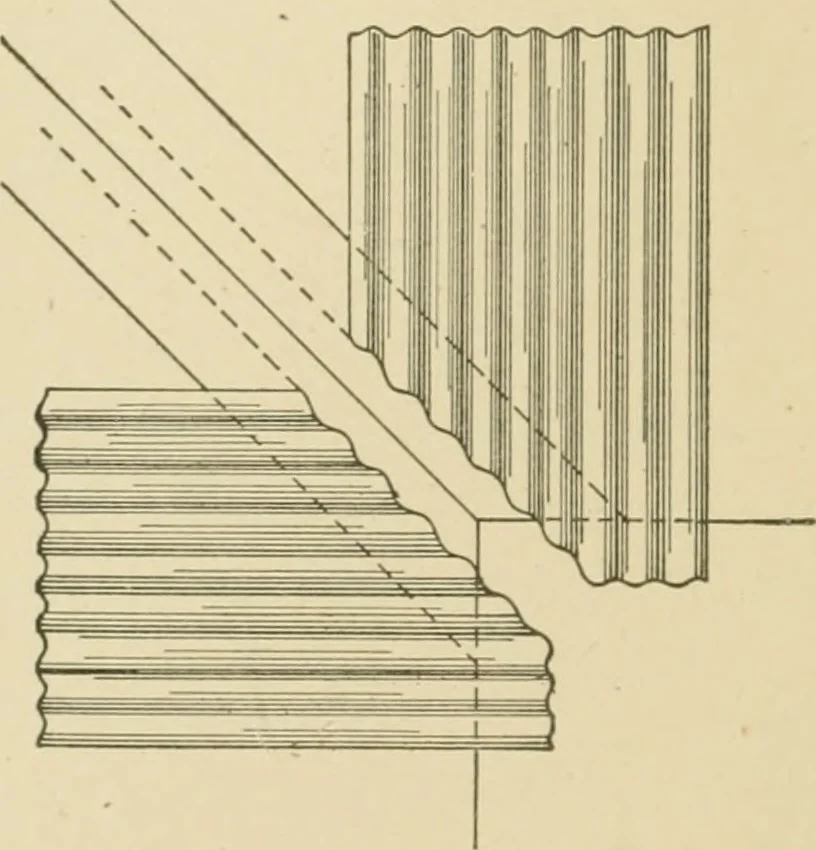

d damaging thelead. Before riveting, theflashing must be well beddedin roofers cement and thenmake a beveled angle ofcement to make a good joint.After this upright flashing isin position a collar is set overthe same and fastened to thestack by means of an iron ringbolted and made tight as shown.… … Fig. 243. 268 SHEET METAL WORK 189 to good advantage in building the upright flashing in Fig. 245. \\Tierethe corrugated iron meets at the ridge, as at D and D in Figs. 230 and
