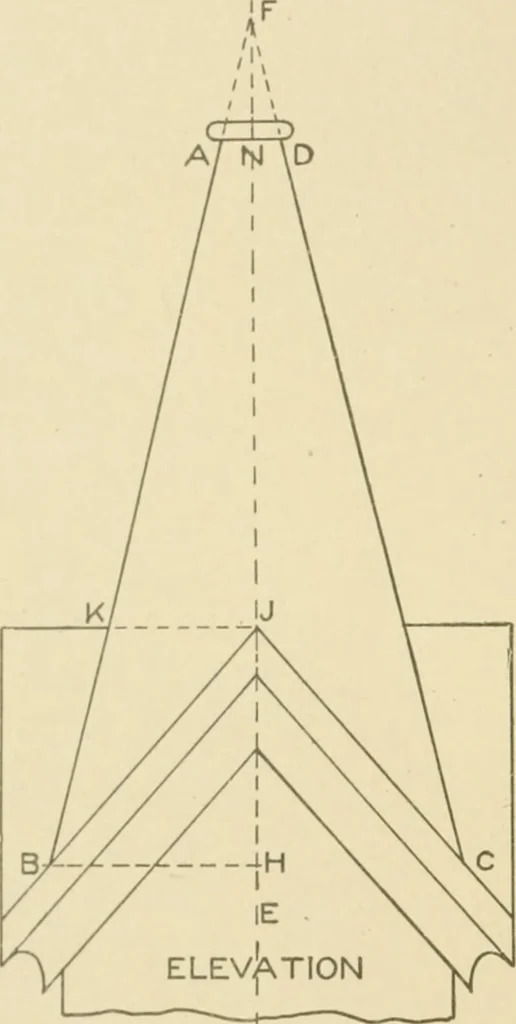

818 228 SHEET METAL WORK tained, as shown from 1 to 8, thus giving the profile M, or true sectionsat right angles to F D. For the pattern, proceed as follows: At right angles to F D,draw the line H K, upon which place the stretchout of the profile M, asshown by the figures. At right angles to H K,…
