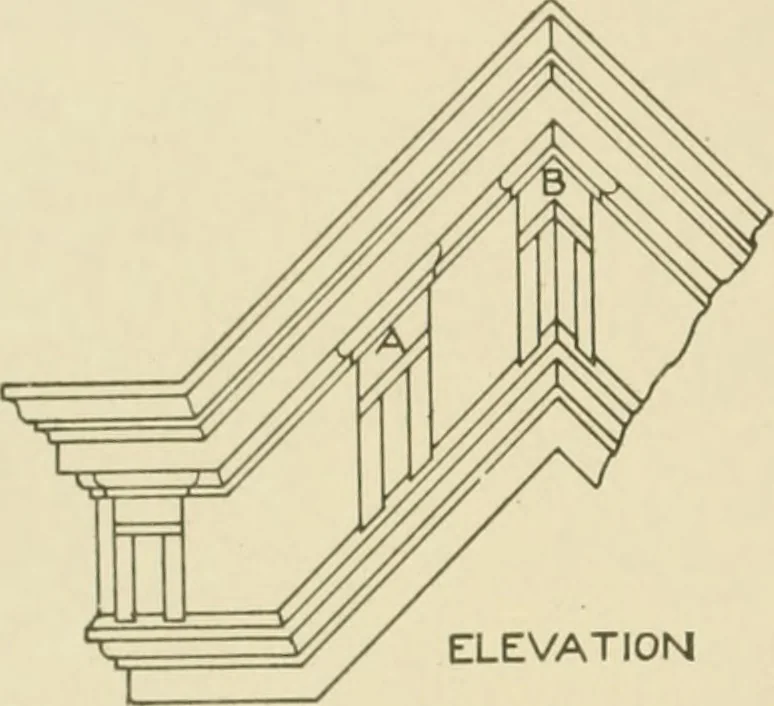

r side, from which points draw horizontal lines crossing H Giri side view and intersecting the face H*I of the bracket at points 1 to7. In line with H G, draw the line J K, upon which place the stretch-out of the profile B C D, as shown by 1 to 7 to 7 to 1 on J K. At rightangles to J K, draw the… … ELEVATION Fig. 314. will J K T. ho the pattern for the return of the drop on the face of the bracket. In Fig. 314, A shows a raking bracket placed in a gable moulding.When lirackets are placed in a vertical position in any raking moulding,thev are called raking brackets. B represents a raking…
