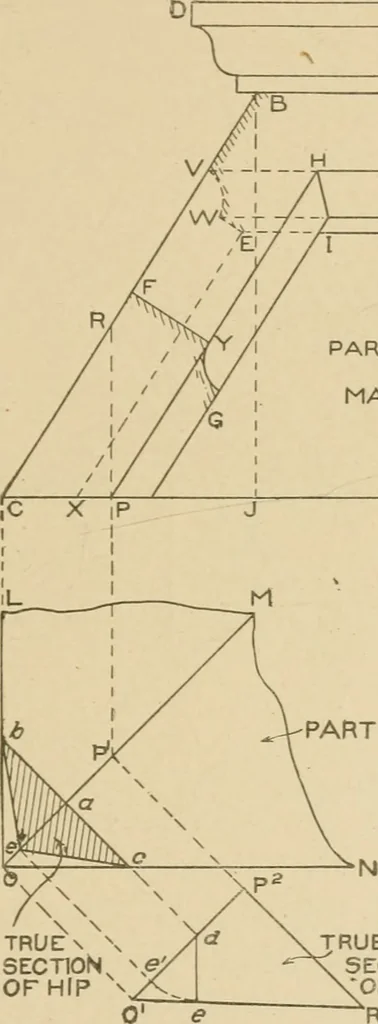

326 SHEET METATv AVORK 241 Before the patterns can be obtained, a developed surface of themansard must be drav»n. Therefore, from B (Fig. 330), drop a ver-tical Hne, as B J, intersecting the hne C K at J. Now take the dis-tance of B C, and place it on a vertical line in Fig. 331, as shown byB C^… … PART ELEVATIONOFMANSARD ROOF K PART PLAN \\ \, \ \TRUETn SECTIONOF HIP TRUE SECTIONON 0-PR Fig. 330. shown from C^ to C in Fig. 331, and draw a line from C to B. Thenwill A B C K be the developed surface of A B C K in Fig.- 330. As both the profiles B Y W E and F Y G are similar, take a tracingof…
