Cyclopedia of architecture, carpentry, and building : a general reference work ... (1907)
American School of Correspondence · Chicago : American Technical Society · leaf 44

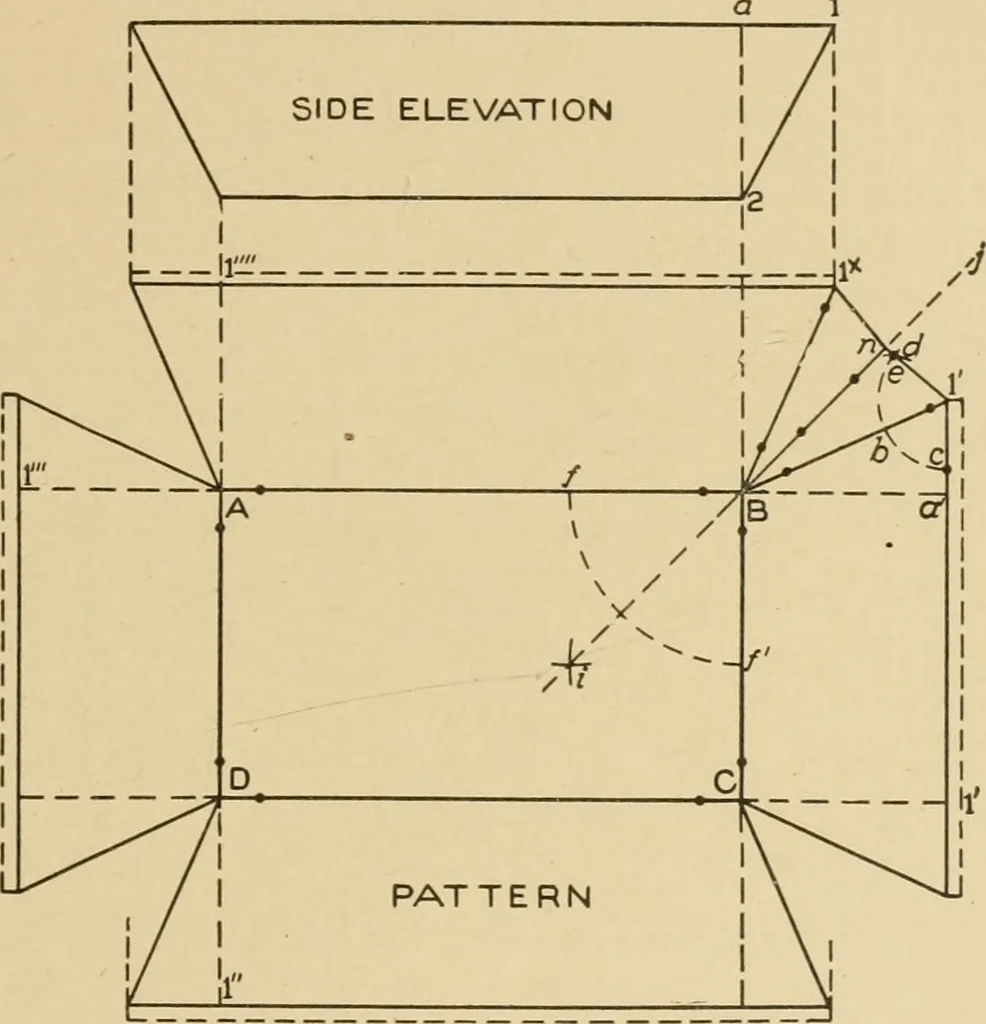

80 TmSMITHING 23 draw radial lines to the center f. Now using f in to as a centerdescribe the arc //. In similar manner, using as X2<.^\\f(i\fh\fc\f(V and fe in side view, and f in vj as center, describe arcs inter-secting radial lines having similar letters as shown. A line tracedthrough points… … Fig. 27.Drip Pan. Fig. 26 shows a view of a drip pan with beveledsides. The special feature of this pan is that the corners a and hare folded to give the required bevel and at the same time have thefolded metal come directly under the wired edge of the pan. Apan folded in this way gives a water…
