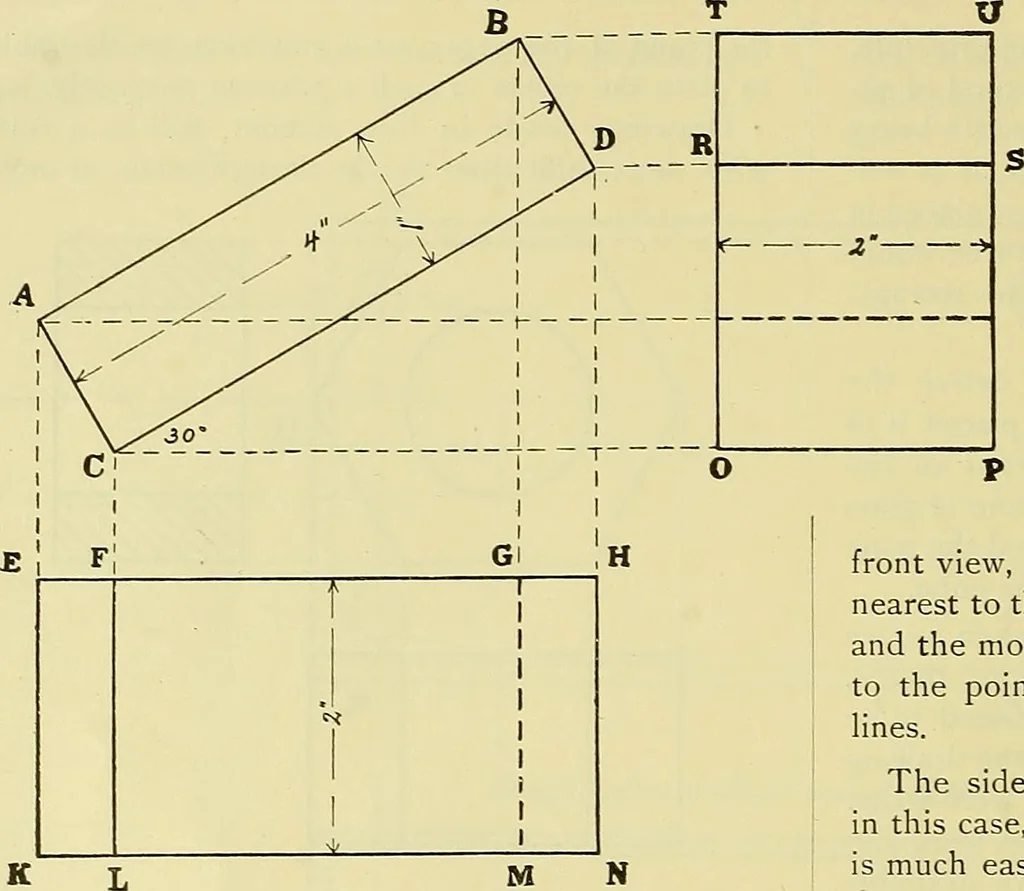

Fig. :X2. views will appear more complicated when the ob-ject is placed in an inclined position. The follow-ing exercises will show the objects drawn before,now placed at different angles. 148 ROGERS DRAWING AND DESIGN. … long and i forms an angle of 30 degrees Fig. 263. Drazc a front view, top view and right side viewof a prism ^x ^x / standiiig with its face ^x / ona horizontal plane, and the long vertical side of theprism forming an angle of jo degrees with the loweredge of the drawing board. Draw the top view…
