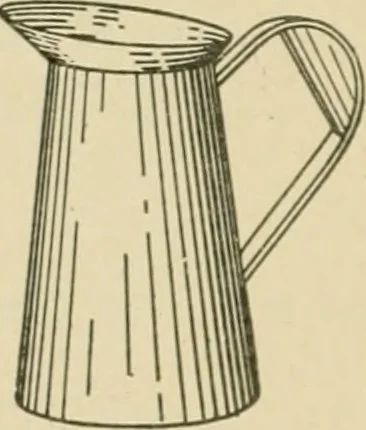

height, by the stretchout of the outline shown in plan.The handles shown on the body and cover in Fig. 36 are plainstrips of metal to which wired or hem edges have been allowedo Measure. Fig. 38 shows a flaring-lipped measure with han-dle attached. Care should be taken in laying out the patterns… … Fig. 38. Quantity. Bottom Diameterin inches. Top Diameterin inches. Height. 1 Gill.% Pint.1 Pint.1 Quart.i^Gallon.1 Gallon. 2.062.603.274.125.186.55 1.371.752.182.753.454.35 3.103.894.906.187.789.80 40 TIKSMITHING 33 Fig. 39 shows the method of laying out the pattern for themeasure and lip. First…
