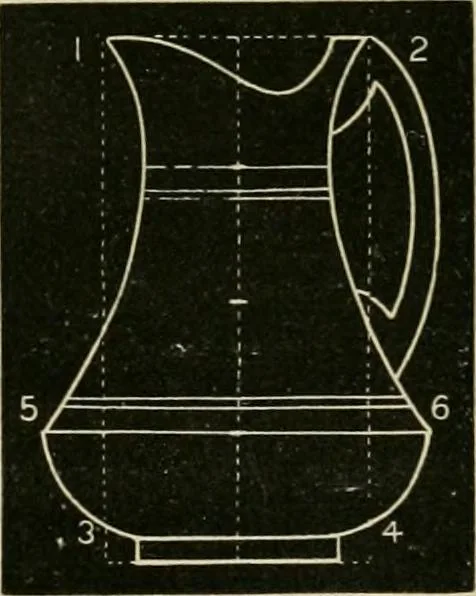

Card-Exercise XXI.Pitcher, Illustrating Compound Curves. Divide the central vertical line into four equaljjarts, and make 1 2, 3 4, equalto two of these parts, and 5 6equal to three. Draw 1 3, 2 4.Einish, noting carefully wherethe lines of the pitcher cross thedotted lines. The width of thebase of… … 148 TEACHERS MANUAL. posite side of the pitcher the same. Extend 1 2 halfof its length beyond 2, and from its extremity drawa straiglit line to a point just above 6. This last lineforms tlie outer line of tlie handle, to which add thetliickuess ; then put a spout, curving above the leftlialf of 1…
