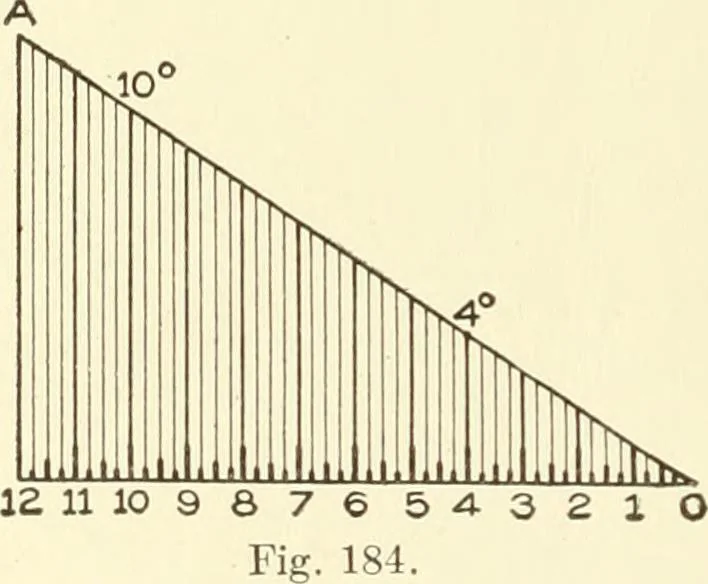

will be explainedhow to obtain the true lengths of the ventilator, ridge, hip, jack, andcommon bars in a hipped skylight, no matter what size the skylightmay be. Using this rule only one set of patterns are required, as forexample, those developed in connection with Figs. 178, 179, 180, and181,… … SHEEl MKTAL WOUK e(l would also be apjdicaMc for skylij^hts of that particular pitch.Using Uiis rule it slioulil he uiidersttMul tliat tlje size of the curb, orframe, forms tlie basis for all measurements, and tliat one of the linesor bentlsofthe bar should meet the line of the curb as shown in…
