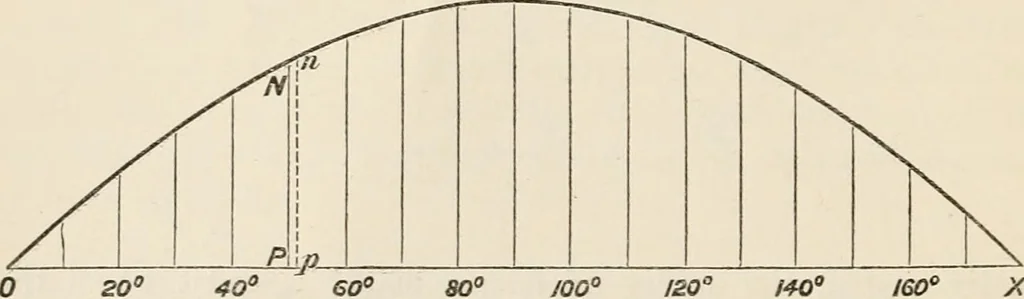

drawn perpendicular to BM, Fig.42, and gjh, g-^ro perpendicular to WL,then, by the same principle as is used above, the length B^E = =y- X hJh Also, if the angle of inclination WSW^ be called a, GZ = BiE - B,G sin a,and, consequently, Moment of statical stability = V x GZ = V(BiK - B^G sin a)= V X… … 6&> 80° /00° IZO° Angles of inclination. X Fig. 43 shows the method of construction for such a curve. Onthe base-line OPX degrees of inclination are set off on acertain scale, 0 corresponding to the upright; the ordinate of thecurve drawn perpendicular to the base-line at any point…
