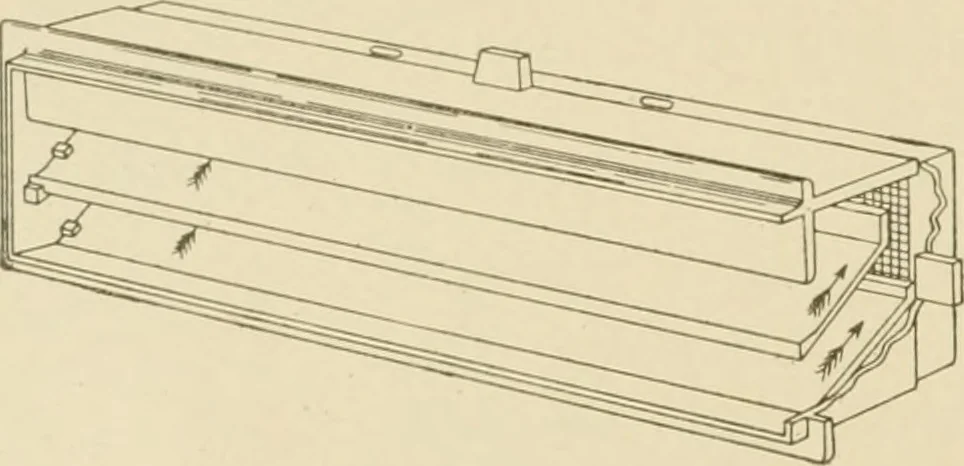

Fig. 76. General Form of Direct-Indirect Fig. 77. Sectiuu ilirough Radiator ShownRadiator. In Fig. 76. Direct=Indirect Radiators. A direct-indirect radiator is simihirin form to a direct radiator, and is placed in a room in the same 101 92 HEATING AND VENTILATION … manner. Fig. 76 shows the general form of this type of radiator;and Fig. 77 shows a section through the same. The shape of thesections is such, that when in place, small flues are formed betweenthem. Air is admitted through an opening in the outside wall; and,in passing upward through these flues,…
