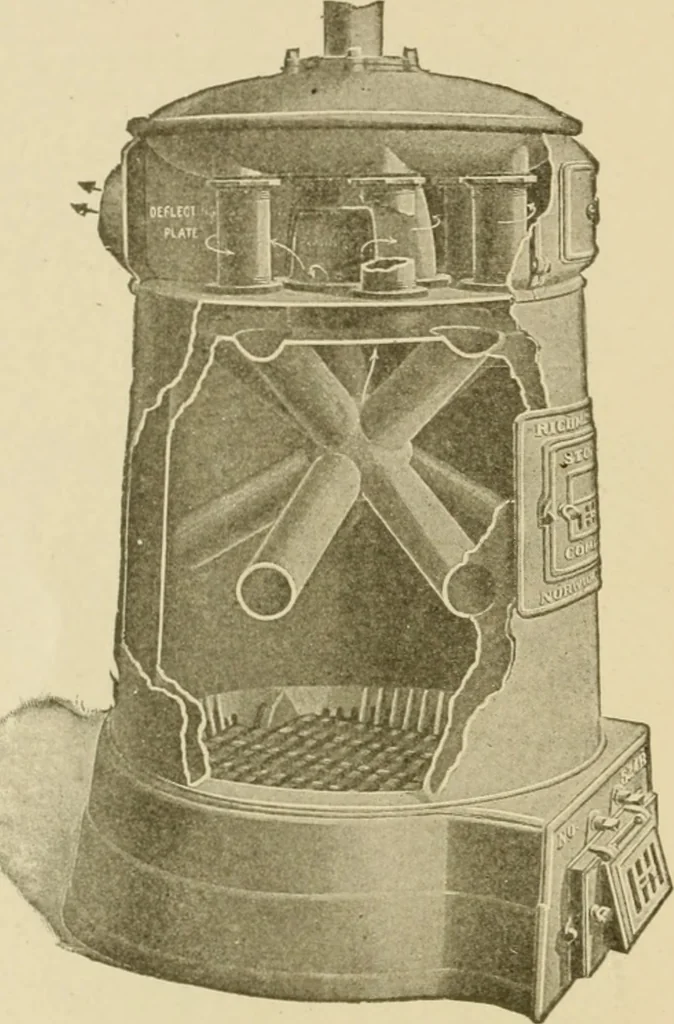

re the expansion of the rod opens the valve and admitswater from the street pressure through the pipes C and D into thechamber E. The bottom of E consists of a rubber diaphragm,which is forced down by the water-pressure and carries with it thelever which operates the dampers as shown, and checks… … Fig. 81. Cast-iron Heater Not Made in Sections. Water Fills Ci-oss-Pipes and Space between Outer and Inner Shells. 106
