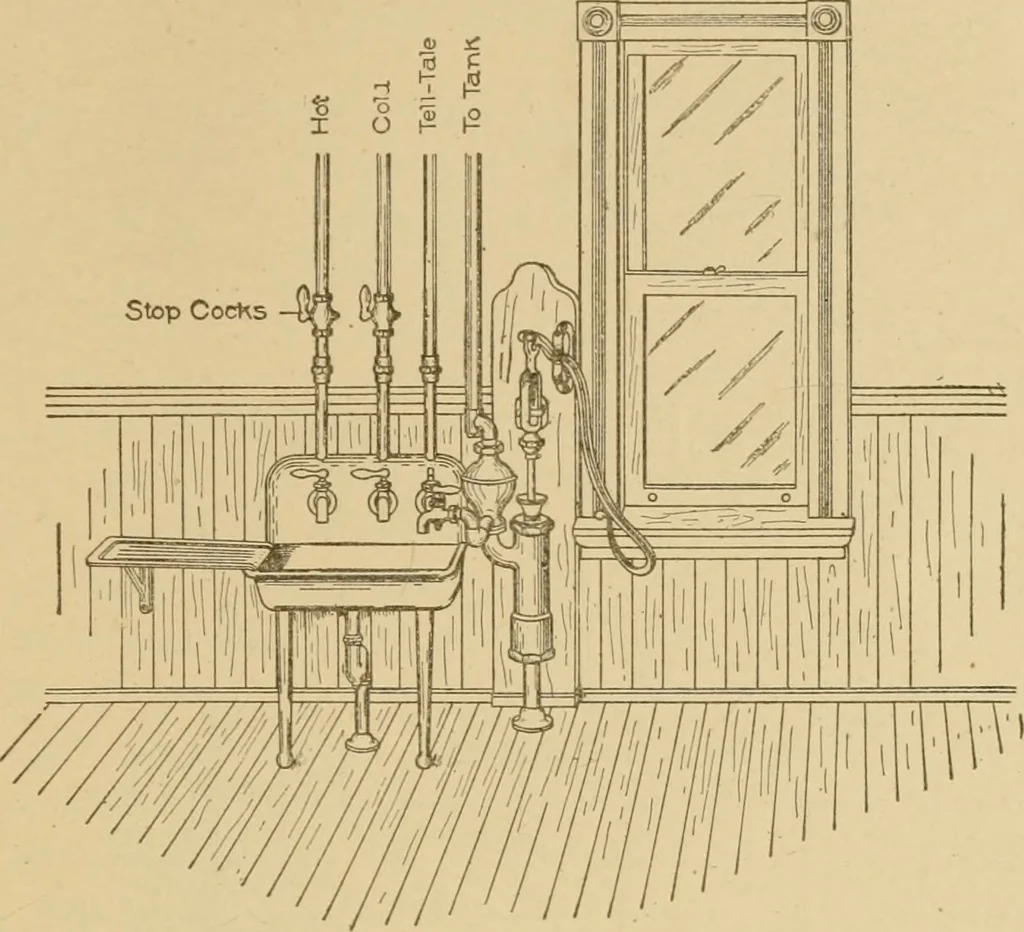

Fig. 76 shows the supplies of the same job, on the kitchen ceiling.The system provides positive circulation to keep hot water near thebathroom fixtures. The hot supply is on the left side for each fixture.There is only one pipe crossed, and it does not interfere with drainingthe job. There are no… … Fig. 75. Pump and Kitehen-Sink of a Country Installation. ^SinV Hot, SinV Cold
