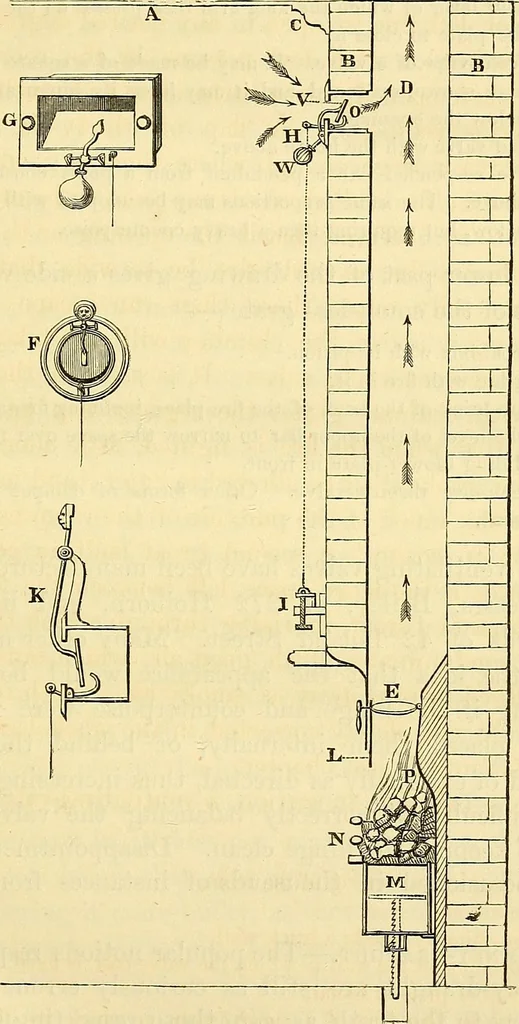

thenbe allowed to pass away as smoky air. Both of theseerrors are completely corrected in the smokeless gratedescribed in the last chapter. Fig. 3 exhibits, in section, a ventilating valve in itsplace. A C, is part of the ceiling of the room.C, the cornice. D E, the chimney-flue in a brick wall.O,… … 38 THE VENTILATION W, the counterbalancing weight. H I, the wire by which a hand below at the screw or peg I, controls or shuts the valve. The wire pulls at the short arm of a bent lever of which the long arm then presses on the back of the plate to close it.G, is a front view of a valve. It may be…
