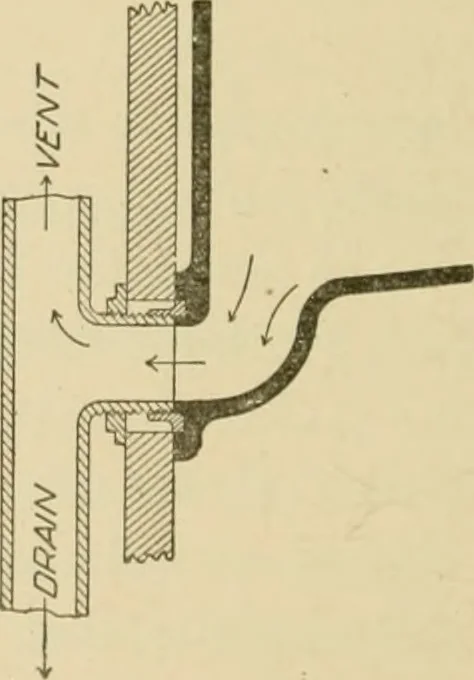

-inch; single sinks or branch waste forone sink or set of trays, 2-inch, with 2-inch trapand 1 j-inch crown vent. Local Ventilation. A ^ccal vent is apipe leading air from the bowl of a closeior through the outlet of a urinal to carry away odors with a current of air fed by the air of the room. Li… … iiii. Ifi4. Part Soot ion of Locally Vtiiteil Uriual iind Couucctiou. 356 PLUMBING 133 vent stack, and W the urinal waste stack. Instead of putting in crownvents for the traps, the branch waste becomes a vent at the junctionof the trap branches, and loops back into the general vent stack.There is…
