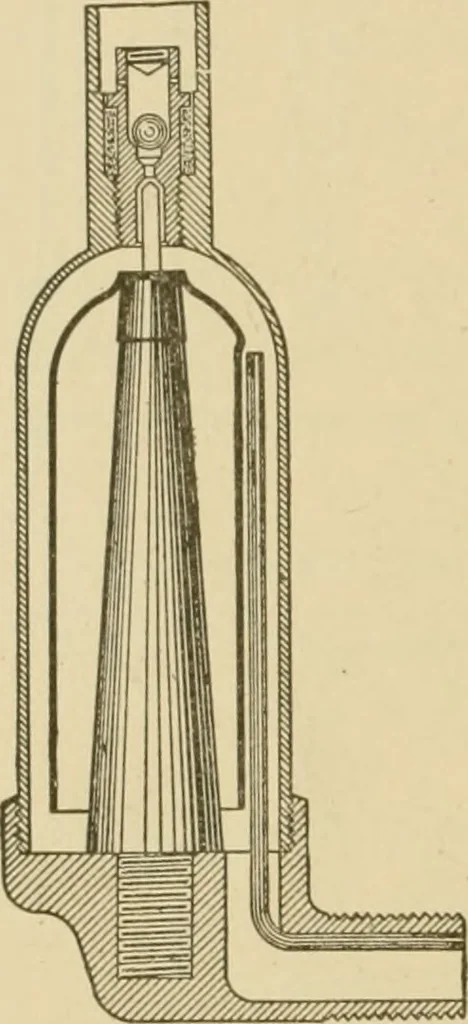

roper use. Table XIV gives the flow of steam in pounds per minute forpipes of different diameters and with varying drops in pressure be-tween the supply and discharge ends of the pipe. These quantitiesare for pipes 100 feet in length; for other lengths the results must becorrected by the factors… … Fig. 46. Vacuum Valve. 70 HEATING AND VENTILATION 61 TABLE XIV Flow of Steam in Pipes of Various Sizes, with Various Drops in Pres= sure between Supply and Discharge Ends Calculated for 100-Foot Lengths of Pipe O . a a 0- Drop in Pressure (Pounds) Q M 3^ M. 1 1^1.13 2 3 4 5 1 .44 .63 .78 91 1.31…
