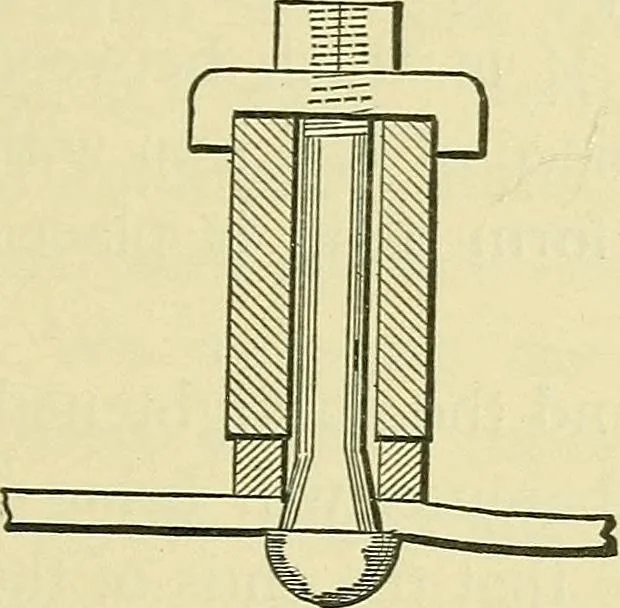

ch, and reamedwith a taper reamer (shown byFig. 54), with the collar A removed, making the holeij^ in. diameter at the top, thereby giving ataper of J^ in. to i in. of length. The boltsmust be heated as nearly as possible to thesame degree, then placed in the die and theround head of i^ in.… … Fig. 53. Fig. 54 one of the holes previously punched with a ]/^ in. 1/4 LOCOMOTIVE ENGINES. punch, and allow the bolt to go up to within j^ in. ofthe head. The object of the collar A is to act as agauge, running the reamer down until the face of thiscollar touches the sheet. This collar is faced…
