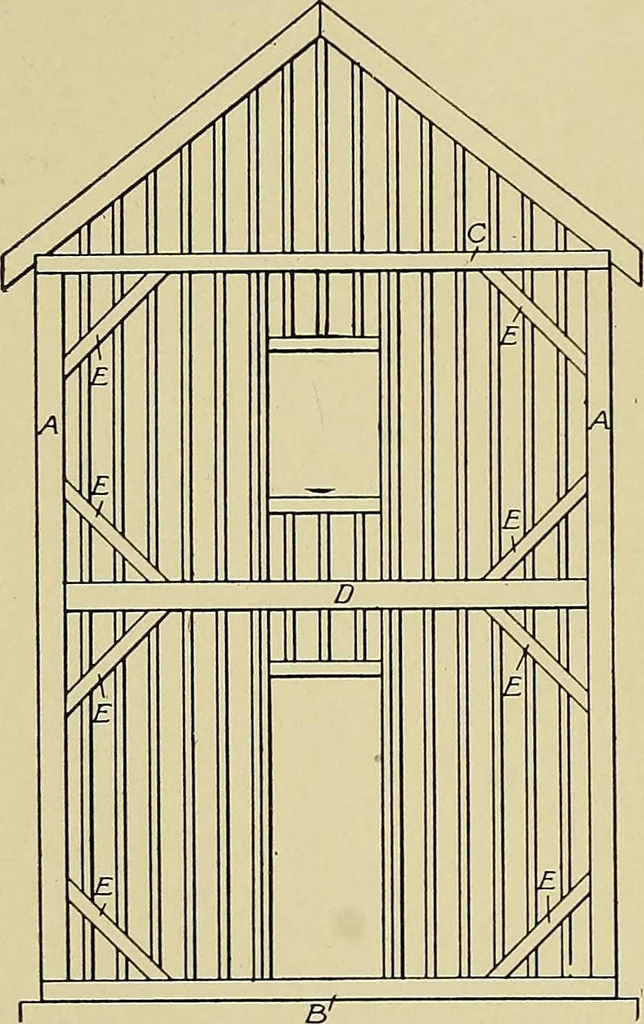

es are mortised together and others are fastenedby means of spikes only. A framework is constructed consistingin each wall of the two corner posts AA, Fig. 90, the sill B,and the plate C, together with a horizontal girt D at each storyto support the floors, and a diagonal brace E at each… … Fig. 90. Example of Braced Framing 82 CARPENTRY 73
