Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter Gilman, 1858-1908 · New York Wiley · leaf 48

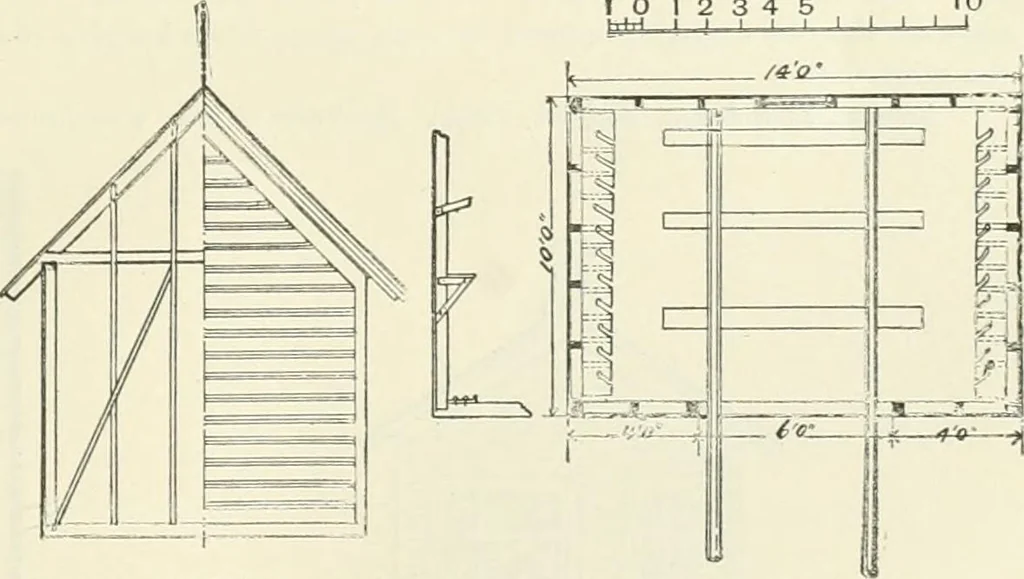

nt Elevation B Fig. 32.—Side Elevation B. according to an orn.imental design, and finished off with galvanized-iron cornices, ridge-rolls, andfinials. St-ctwn Tool-hoiisi\ Northern Pacific Railroad.—The standard section tool-house of the NorthernPacific Railroad, shown in Figs. 33 to 35, is a frame… … Fig. 33.—Front Elevation. Fig. 34—SiPF Elevation. Fig. 35.—Groixd PL.\N. shingles. The large door for the hand-car is situated in the centre of the long side of the buildingfacing the track; it is 6 ft. wide, in two sections, hinged on the outside of the building. There isone window in the house…
