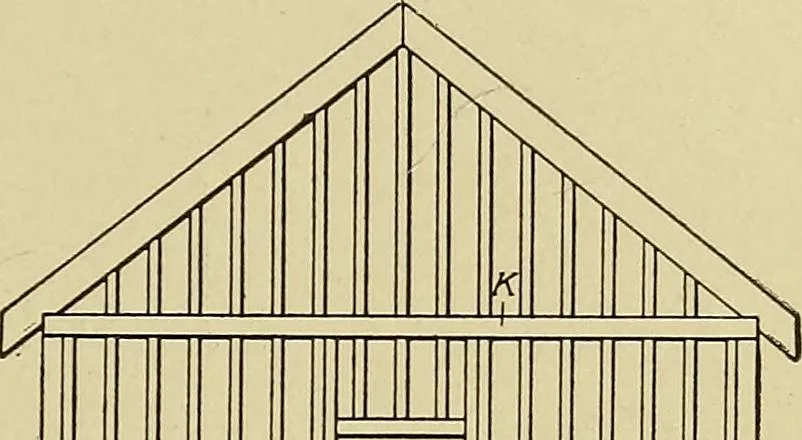

Fig. 90. Example of Braced Framing 82 CARPENTRY 73 … from the sill H to the plate K, with a light horizontal piece J, calleda ribbon or ledger board, set into them at each floor level tosupport the floor joists. This frame depends mainly upon the board-ing for its stiffness, but sometimes light diagonal braces are set intothe studs at each corner to…
