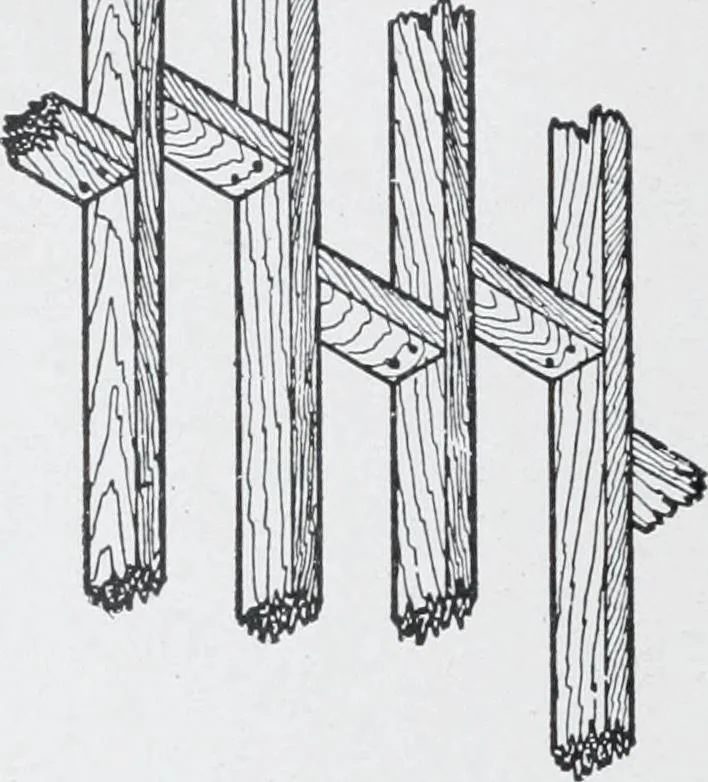

31LL Fig. 31. Brick Filling. done the fire-stopping of plaster or bricks, the principal points beingto build up on the underpinning behind the sill to the underside of 4i BUILDING SUPERINTENDENCE … Fig. 33. Horizontal Bridging ofPartition. floor with brick, not only to prevent the spread of fire, but to preventrats from going from the cellar up into the walls and so all over thehouse. On the top of girders the same thing should be done, and if they support partitions, the brickyWJi work…
