Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 162

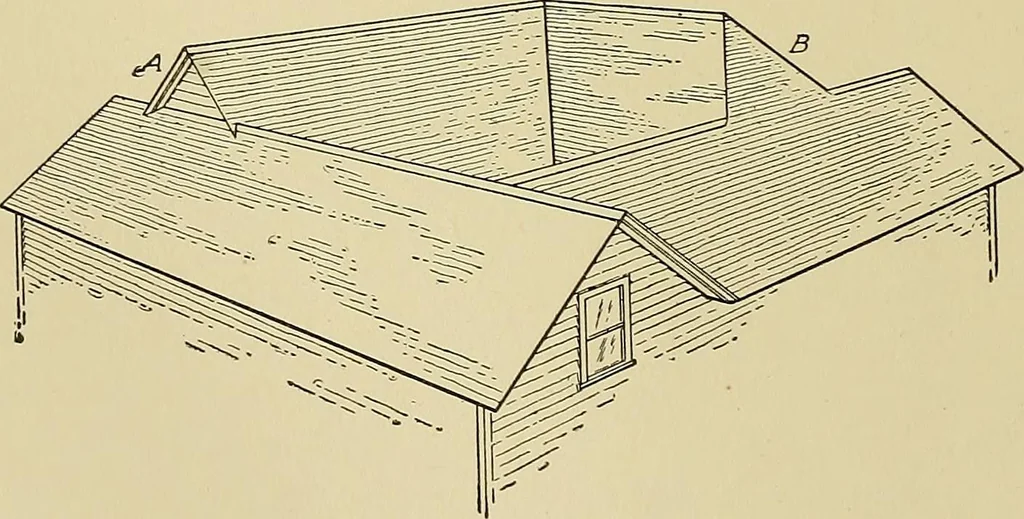

Fig. 168. Valley Roof the secondary roof rises above the ridge of the main roof, the endwhich projects above the main ridge is usually finished with a smallgable a, or a small hip h, as shown in Fig. 169. This arrangementdoes not make a pleasing appearance, however, and should beavoided if… … Fig. 169. Hip and Valley Roof Showing Dififerent Roof Levels AroundInner Court are usually wings or projecting portions of some kind which must becovered with a separate roof which must be joined to the mainbody of the roof with valleys, and it is these valleys which are the 126 CARPENTRY 115 cause…
Architecture · Building
