Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 164

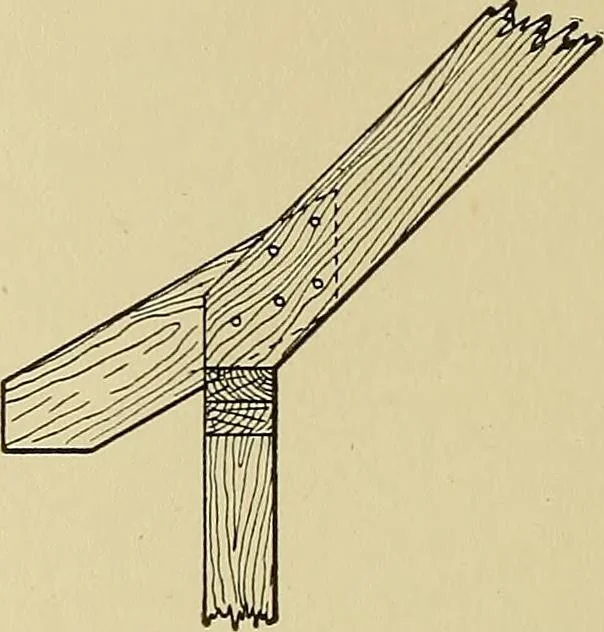

Fig. 170. Rafter Extendedto Form the Eaves Fig. 171. False Rafter but may, and usually does, make an angle with it, as shown in the figure, so as to give a break in the roof hne near the line of the eaves. It is sometimes desired to form a concealed gutter around the eaves, and in order to do this…
