Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 89

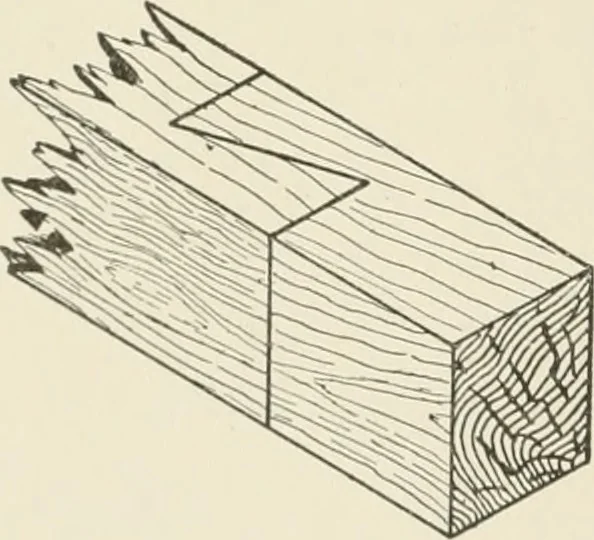

d Splice The halved splice is perhaps the best that can be used to resistdirect compression, and when it is combined with fish plates andbolts, as shown in Fig. 58, it may be used in cases where some tensionis to be expected. It will be noticed that in Fig. 58 the ends of thetimbers are cut with a…
Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
