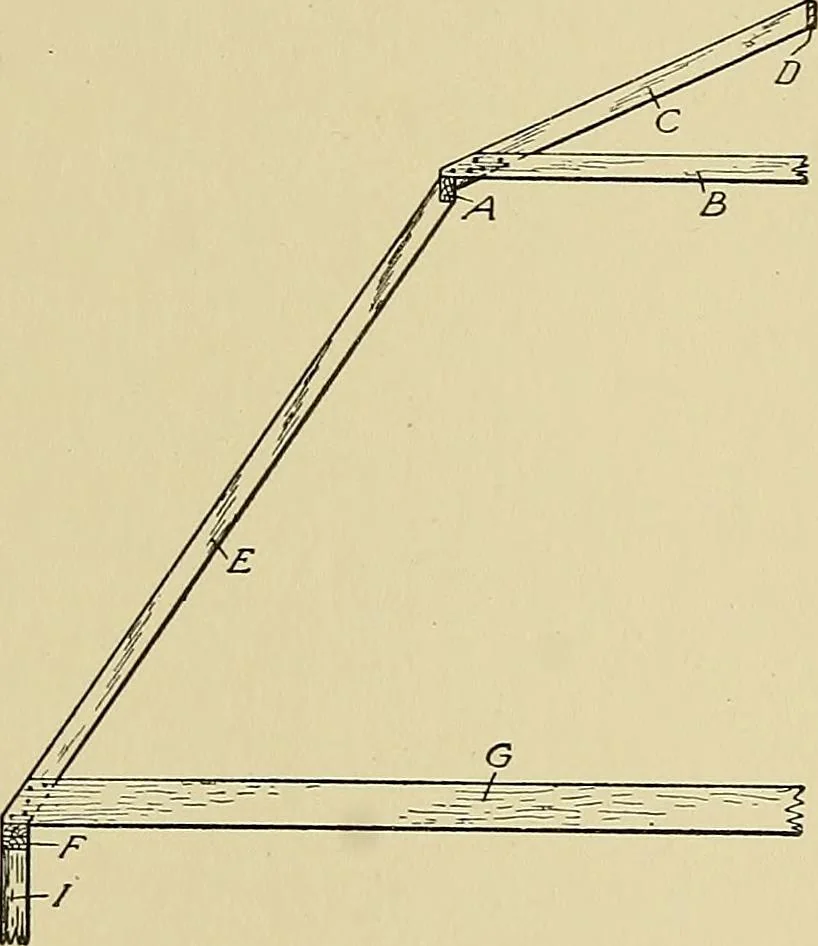

the building and to counteractthe outward thrust of the rafters. Sometimes these floor joists aredropped below the wall plate F, and are supported on a ledger boardnotched into the wall studding I. This construction is not so goodas that shown in the figure, because the joist is not so effective as… … Fig. 185. Framing for Gambrel Roof 140 CARPENTRY 129
