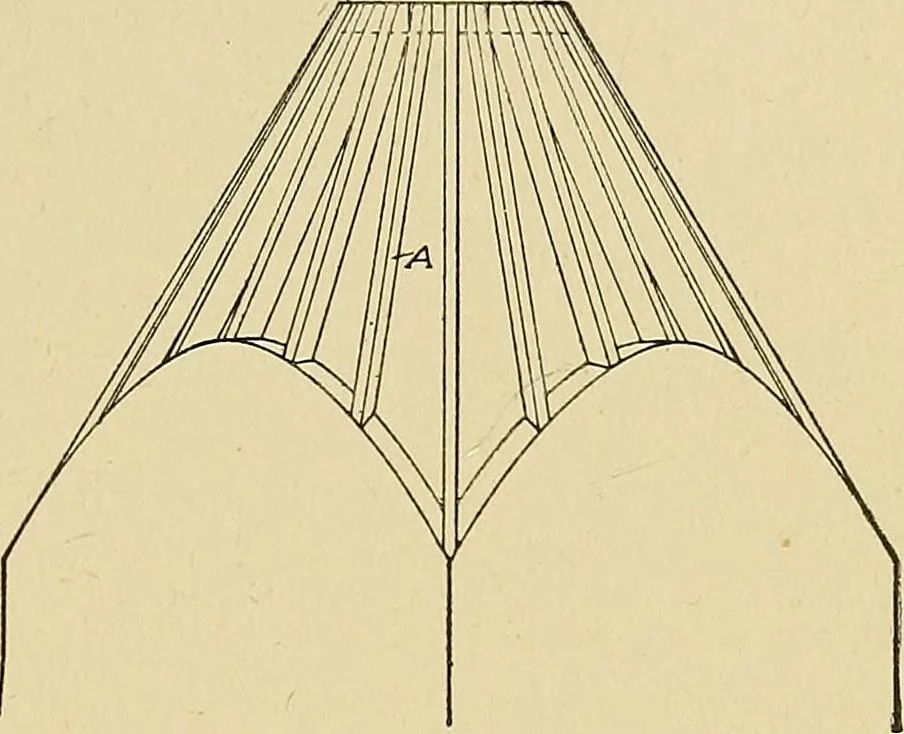

Fig. 258. Dome Framing with ExtendedRafters 196 CARPENTRY 185 … Fig. 259. Diagram Showing Construction forApex of Conical Dome Fig. 260 shows an elevation of a spherical dome which hascurved ribs A, as shown. Each of these ribs must be bent or shapedto the segment of a circle, in order that the edges may lie in a sphericalsurface. If the design calls for a…
