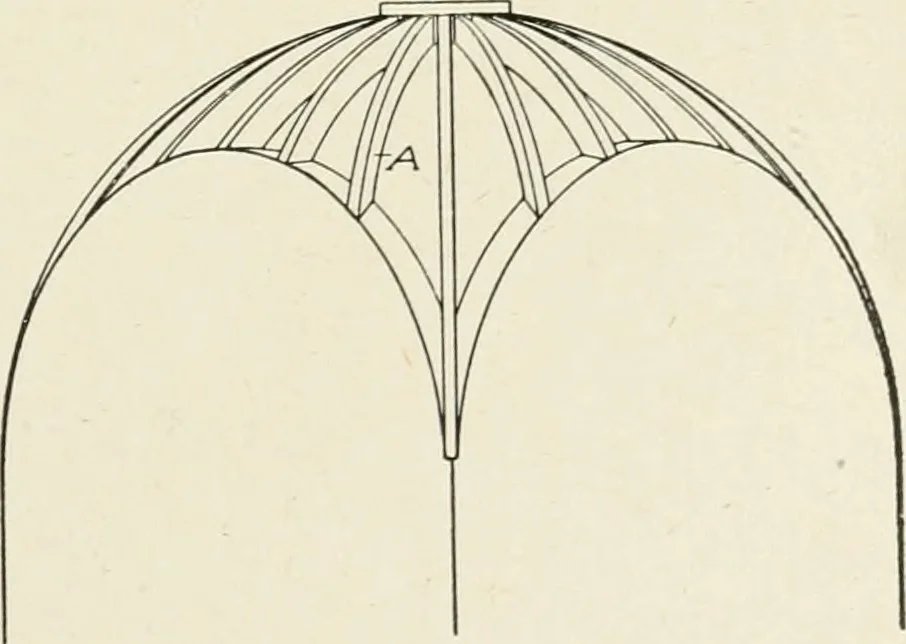

st be domical, thenboth the inside and outsideedges of the ribs must bedressed so as to lie in thedomical surface. Conical domes are veryuncommon, but they aresometimes used. A conicaldome is much easier toframe than a sphericaldome because the ribs arestraight. The shape of thecurved plate which… … Fig. 260. Diagram Showing Construction forSpherical Dome 197 186 CARPENTRY
