Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 302

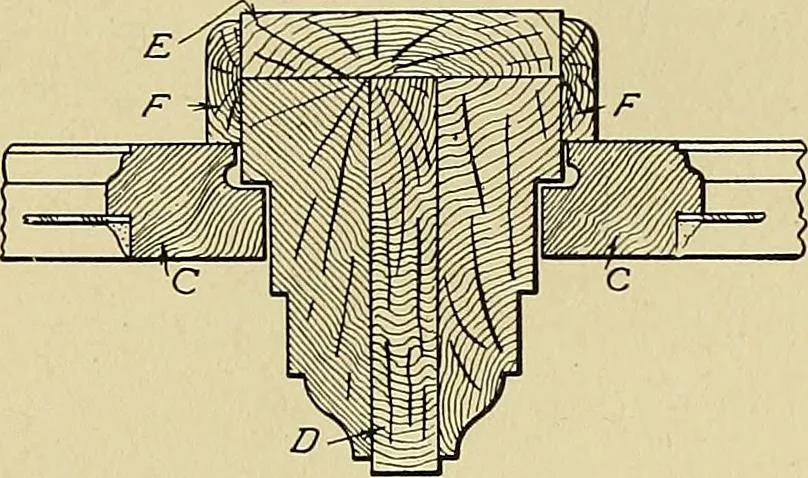

Fig. 335. Casement Window with Mullion muUion is seen at ^. It will be noticed that it is much narrowerthan the mulhon used in the case of the double-hung window shownin Fig. 333, the reason for this being that in the case of the casement 245 234 CARPENTRY … Fig. 336. Mullion Construction for Fig. 335 window there are no weights to be taken care of and so there neednot be any weight boxes in the thickness of the mulHon. BB are the casement sashes which are in this case filled withleaded glass. They should be hinged at the sides to open inward or…
