Practical mechanical drawing and machine design self taught .. (1907)
Westinghouse, Charles. [from old catalog] · Chicago, F. J. Drake & co. · leaf 107

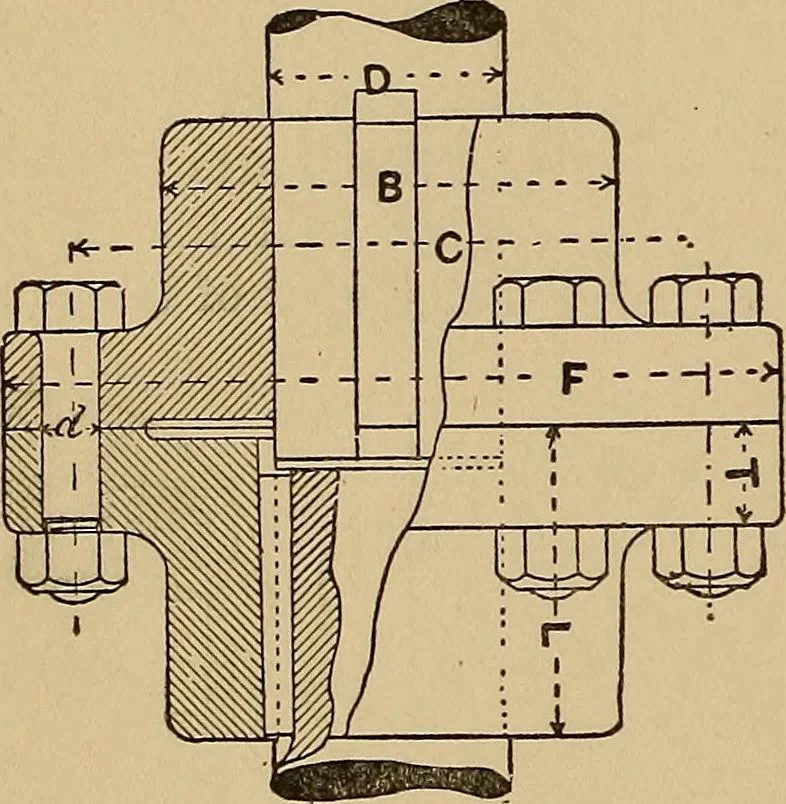

g. 186, is very easily put on or takenoff, it has no projecting parts, the bolts being com-pletely covered, and, like the solid couplings, itmay be used as a driving pulley, or a driving pul-ley may be placed on it. In making this coupling 104 MECHANICAL DRAWING the faces for the joint between the… … Fig. 187—Cast-iron Flange Coupling. the paper is removed and the box put on the shaftand bolted up, the box gripes the shaft firmly. Thekey has no taper and should fit on the sides only. Dimensions of Split Couplings. Diam. of shaft, D IX IX 2 2% 2X 2% 3 3X 4lOX Diam. of Box.Di 4X 5K 5% 6 6% 7Ji 7%…
Mechanical drawing · Machine design
