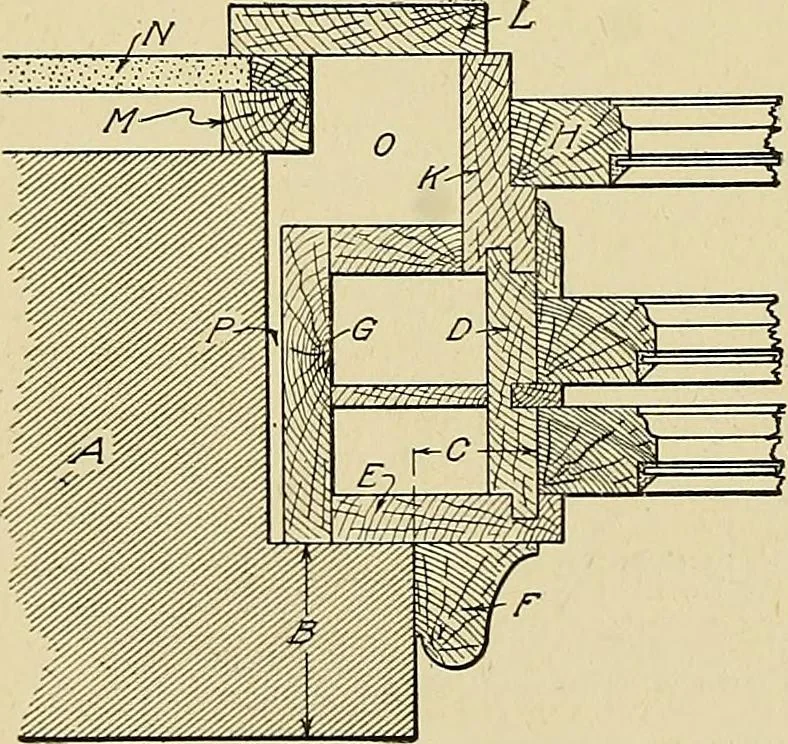

willbe seen that there is a sort ofrabbet made in the back part ofthe wall in which to set the win-dow frame, and that the frontportion of the wall projects infront of the frame. This is donein order that there may be acertain amount of solid masonrywhich will cover the joint between the wall and… … Fig. 337. Horizontal Section through Jambof Double-Hung Window in Brick Wall 246 CARPENTRY 235 rabbet in which the frame sets may vary considerably, but isusually 2 to 4 inches. From the face of the brick reveal to the face of the pulley stile Dthe distance C may be made anything, according to…
