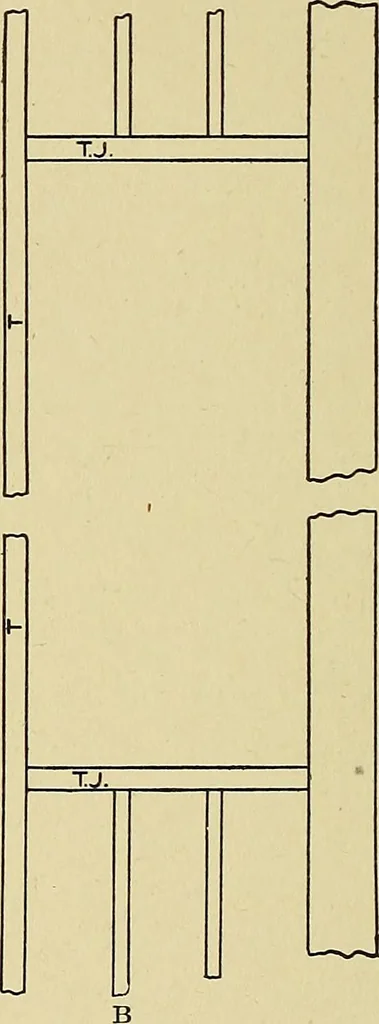

hould not be done, as it is notnearly so strong or durable as the old method of framing the joists andtrimmers together. Fig. 32 shows a stair with three newels and a platform. In this 281 20 STAIR-BUILDING example, the first tread (No. 1) stands forward of the newel posttwo-thirds of its width.… … U-J Fig. 31. Showing Ways of Trimming Well-Hole when Joists Run in Different Directions. cut string and the lower end of the second cut string. The platform(12) is supported by joists which are framed into the wall and arefastened against a trimmer running from the wall to the newel alongthe line…
