Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 170

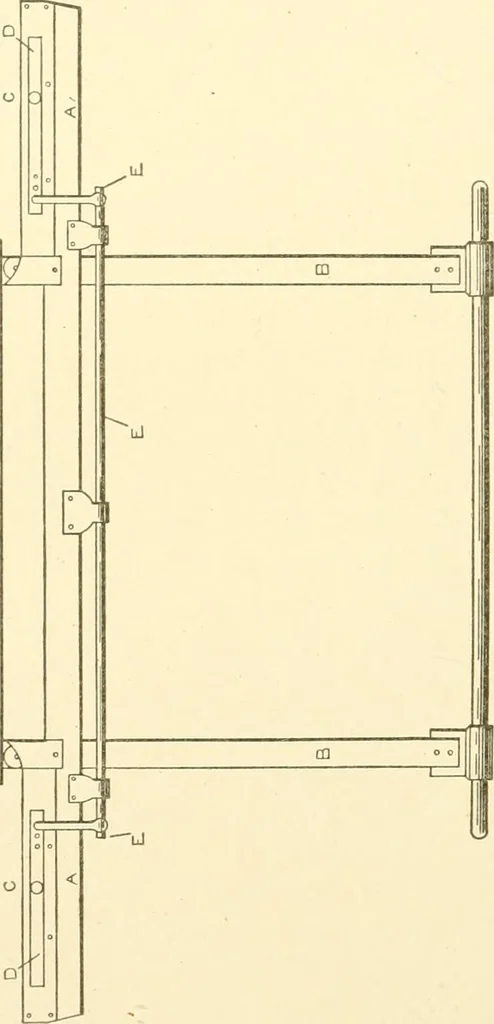

Fig. 91. Lay Forward ofPerpendicular. 147 134 WEAVING. The Lay. The following parts comprise the lay: Fig. 92,AA, lay sole, a long piece of wood varying in size, according to T=j0 TJ … the width and make of loom; it is most commonly made fromwell seasoned ash. BB, two lay swords which support the sole; 148 WEAVING. 135 the swords are connected at the foot to the rocker shaft, the crankarms are also connected to a lug or bracket fixed at the back ofthe swords and lay sole. CC,…
Textile industry · Textile fabrics
