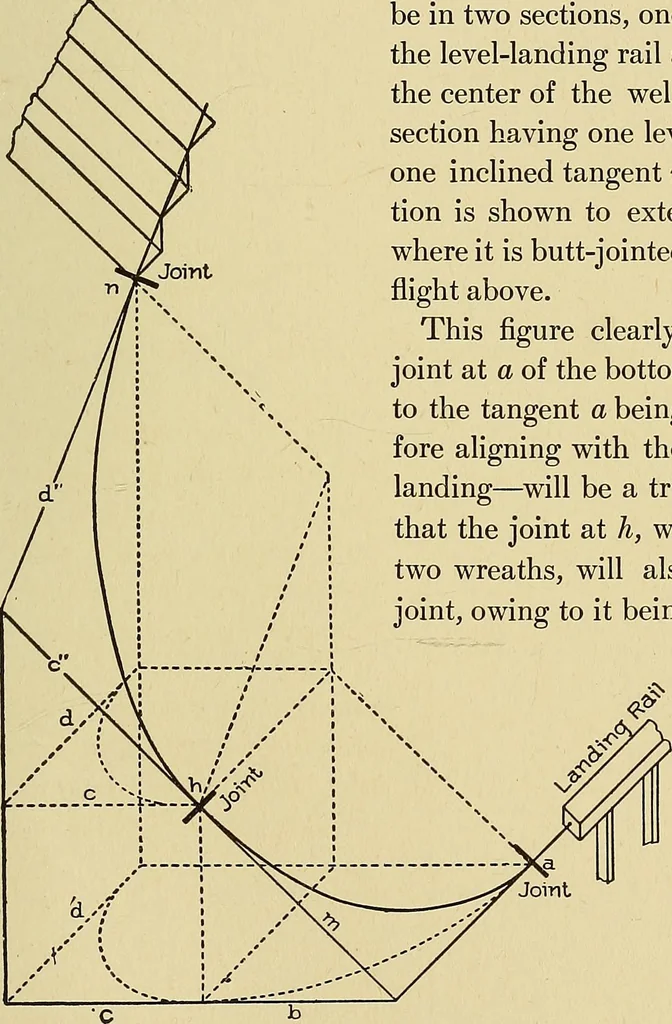

tt-joint; andthat the joint at h, which connects thetwo wreaths, will also be a true butt- N\ I / ; joint, owing to it being made square to \ ! / i the tangent m of the bottomwreath and to thetangent c of theupper wreath,both tangentshaving the sameinclination; alsothe joint at n willbutt square to… … 313 50 STAIR-BUILDING owing to it being made square to the tangent d, which is shown tohave the same indination as the rail of the flight adjoining. As previously stated, the use made of tangents is to square thejoints of the wreaths; and in this diagram it is clearly shown that theway they can be…
